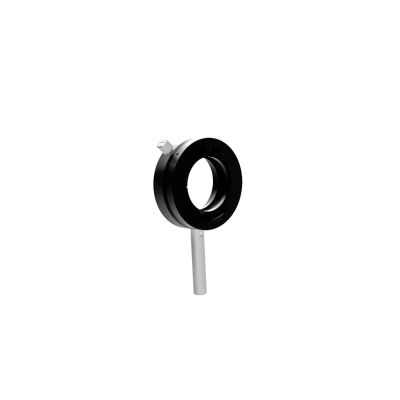

Polarizer Holder
PH-50.8-ARS
Used to adjust the direction of polarization of waveplates and polarizer optics. The mount has 360 degrees of smooth rotation.
◦The SPH series uses a micrometer for fine adjustment.
◦The scale plate on the PH and SPH series can be positioned to provide a convenient reference to the polarizer or crystal axis.
◦The SPH can be post mounted with the micrometer at the top or at the side for convenient operation in a variety of environments.
◦The SPH includes a locking mechanism to prevent accidental adjustments.
◦Optics are held in place with retaining rings and resin rings.
◦The MPH series is designed for use in small systems and narrow spaces.
◦The scale plate on the PH and SPH series can be positioned to provide a convenient reference to the polarizer or crystal axis.
◦The SPH can be post mounted with the micrometer at the top or at the side for convenient operation in a variety of environments.
◦The SPH includes a locking mechanism to prevent accidental adjustments.
◦Optics are held in place with retaining rings and resin rings.
◦The MPH series is designed for use in small systems and narrow spaces.
| Name | Polarizer Holder |
|---|---|
| Weight | 0.5000lbs |
| Guide |
|
| Attention |
|
| Diameter | 50.8mm |
| Compatible Optics Diameter | φ50.8mm |
| Compatible Optics Thickness | 2 - 10mm |
| Clear Aperture φA | φ47mm |
| Scale MIN Reading | 1° |
In stock
SKU
PH-50.8-ARS
$219.50
Customize product
Used to adjust the direction of polarization of waveplates and polarizer optics. The mount has 360 degrees of smooth rotation.
