Objective Lens for Vacuum with X-Ray Aperture

PLLW/PALLW

In stock

SKU

PLLW/PALLW

OptoSigma's specialized vacuum objective lenses are engineered for demanding applications within high-vacuum environments, particularly those involving X-ray radiation.
These lenses feature a central through-hole along the optical axis, designed to facilitate the transmission of X-rays for simultaneous optical and X-ray analysis or imaging.
Constructed from untreated stainless steel to minimize outgassing, a side degassing hole is incorporated to expedite the removal of trapped air between the lens and the lens barrel, further enhancing vacuum performance. The central X-ray through-hole is available in two configurations: a transparent version for direct X-ray transmission and a non-transparent version for applications where X-ray transmission is not required.
These lenses are ideal for use in synchrotron facilities, X-ray microscopy, and other high-energy physics experiments where precise optical focusing and vacuum compatibility are essential in harsh vacuum conditions.

Add to Wish List

Customize product

Filters

Enabled filters :

Remove all filters

Guide ▶We support to design, manufacture and OEM supply of various kinds of custom lens based on our many years of experiences on optical design, polishing, coating and assembly technology.
■Custom lens design example
・Large aperture fθ lens (scan area 180mm)
・Machine vision lens with mega-pixels
・Projection lens for exposure system
・objective lens for fs laser
・Variable spherical aberration correction objective lens
・Phase contrast microscope unit
・Differential interference microscope unit

Name

Mounting thread C

Numerical Aperture

Delivery

Price

Add to cart

details

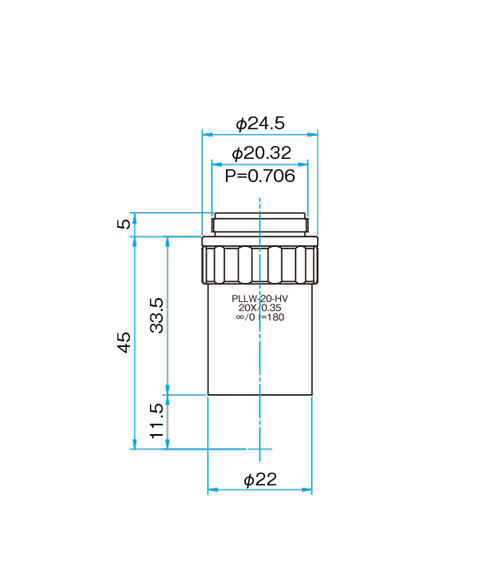

PLLW-20-HV

RMS (M20.32 P0.706)

0.35

1-3 weeks

Optical magnification with SIZM Zoom Microscope Body	5.6～77.6
Hole dia. (cavity）	φ1.5mm
Focal Length	9mm
Parfocal Length	45mm
Working Distance	11.5mm
NA	0.35
Resolution	1μm
Image Circle	φ5.2～φ11mm
FOV of camera (1/2 inch)	X 0.93～0.08mm　Y 0.86～0.06mm

details

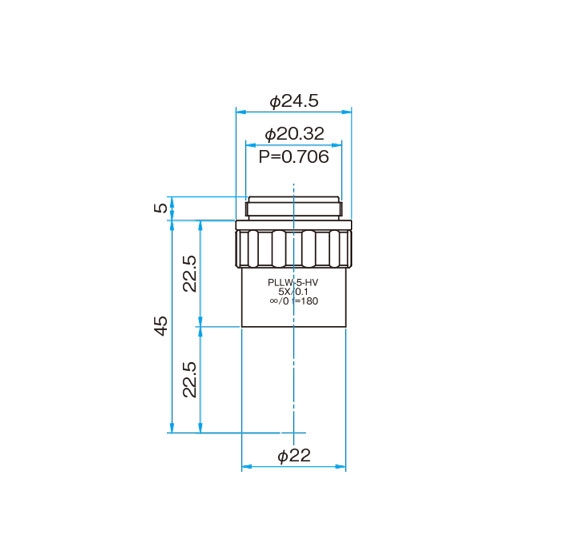

PLLW-5-HV

RMS (M20.32 P0.706)

1-3 weeks

Optical magnification with SIZM Zoom Microscope Body	1.4～19.4
Hole dia. (cavity）	φ1.5mm
Focal Length	36mm
Parfocal Length	45mm
Working Distance	22.5mm
NA	0.10
Resolution	3.4μm
Image Circle	φ5.2～φ11mm
FOV of camera (1/2 inch)	X 3.7～0.33mm　Y 3.4～0.25mm

details

PLLW-10-HV

RMS (M20.32 P0.706)

0.25

1-3 weeks

Optical magnification with SIZM Zoom Microscope Body	2.8～38.8
Hole dia. (cavity）	φ1.5mm
Focal Length	18mm
Parfocal Length	45mm
Working Distance	19mm
NA	0.25
Resolution	1.4μm
Image Circle	φ5.2～φ11mm
FOV of camera (1/2 inch)	X 1.9～0.16mm　Y 1.7～0.12mm

details

PALLW-10-HV

M26 P0.706

0.30

1-3 weeks

Optical magnification with SIZM Zoom Microscope Body	2.8～38.8
Hole dia. (cavity）*2	φ1.5mm
Focal Length	18mm
Parfocal Length	45mm
Working Distance	34mm
NA	0.25
Resolution	1.4μm
Image Circle	φ5.2～φ11mm
FOV of camera (1/2 inch)	X 1.9 - 0.16mm　Y 1.7 - 0.12mm
