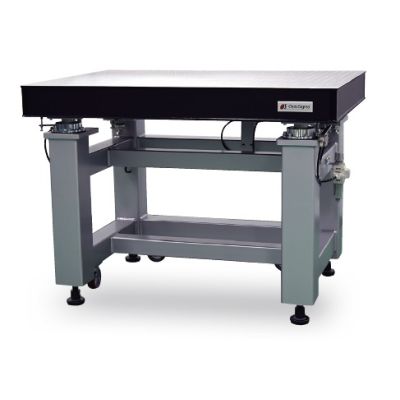

High-performance Vibration Isolation Systems with Aluminum Honeycomb Top (Automatic Vertical Leveling)
TDI-2015-200LA
Our highest performance vibration isolation system.
Utilizing independent mechanisms for the vertical and horizontal directions, this system achieves the high performance and efficiency required for the most demanding applications.
Utilizing independent mechanisms for the vertical and horizontal directions, this system achieves the high performance and efficiency required for the most demanding applications.
◦This vibration isolator rapidly attenuates vibrations transmitted to mounted equipment and instruments, and is essential for mounting equipment and instruments that are affected by vibration.
◦The bench is lightweight with excellent stiffness due to the aluminum honeycomb core.
◦The top surface of the bench is magnetic stainless steel plate, with tapped holes (M6 25×25mm matrix) over the entire surface allowing both magnetic type and screw fixing type systems or equipment to be mounted.
◦The manual leveling system does not require a continuous air supply. The isolators can be pressurized with just a hand air pump.
◦The bench is lightweight with excellent stiffness due to the aluminum honeycomb core.
◦The top surface of the bench is magnetic stainless steel plate, with tapped holes (M6 25×25mm matrix) over the entire surface allowing both magnetic type and screw fixing type systems or equipment to be mounted.
◦The manual leveling system does not require a continuous air supply. The isolators can be pressurized with just a hand air pump.
| Name | High-performance Vibration Isolation Systems with Aluminum Honeycomb Top (Automatic Vertical Leveling) |
|---|---|
| Weight | 580.0000lbs |
| Guide |
|
| Attention |
|
| Image Label | High-performance Vibration Isolation Systems with Aluminum Honeycomb Top (Automatic Vertical Leveling) |
| A x B | 2000mm x 1500mm |
| H | 800mm |
| T | 200mm |
| Type | Automatic Vertical Leveling |
| A×B | 2,000×1,500mm |
| H | 800mm |
| T | 200mm |
| Load capacity | 4,903N(about 500kgf) |
In stock
SKU
TDI-2015-200LA
SGD 14,756.10
Customize product
Our highest performance vibration isolation system.
Utilizing independent mechanisms for the vertical and horizontal directions, this system achieves the high performance and efficiency required for the most demanding applications.
Utilizing independent mechanisms for the vertical and horizontal directions, this system achieves the high performance and efficiency required for the most demanding applications.
