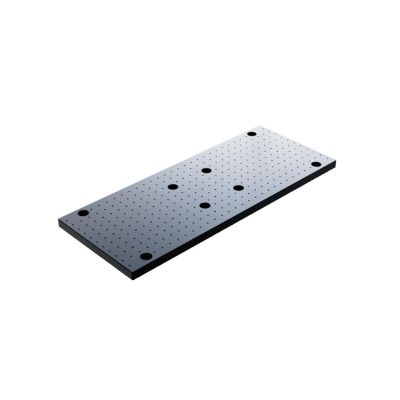

Optical baseplate M2 300mm x 120mm

OBB-123EE

The OBC model has M4 tapped holes on 25×25mm matrix, and the OBB model has M2 tapped holes on 10×10mm matrix.

More Information
Name	Optical baseplate M2 300mm x 120mm
Weight	0.9300lbs
Guide	Medium low-profile optical rails or compact aluminum rails can be secured on the top surface. In that case, adapters for converting M6 to M4 (AD-M6-M4) and M6 to M2 (AD-M6-M2) are available. (WEB Reference Catalog Code/W6030) We will accept production of sizes not listed in the catalog.
Attention	Note that this product does not come with grips.
Image Label	Optical baseplate M2 300mm x 120mm
Size	120×300mm
Tapped Holes on Top Surface	M2
Plate Thickness	10mm
A	250mm
B	50mm
C	100mm

In stock

SKU

OBB-123EE

SGD 255.68

The OBC model has M4 tapped holes on 25×25mm matrix, and the OBB model has M2 tapped holes on 10×10mm matrix.
