Scale part

SPV-25S

Skip to the beginning of the images gallery

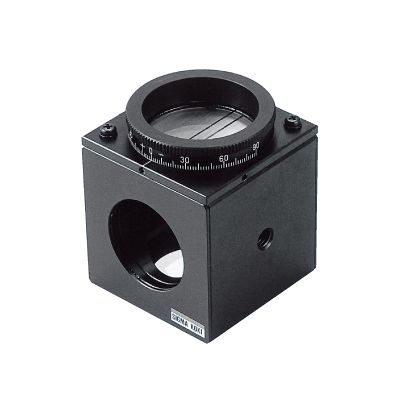

Beam collimation checkers (SPV-25/SPUV-25) are shear interferometers of the simplest design, used to examine the parallelism of laser beam expanders (collimators).

Details

◦Evaluation of the beam status on the μrad order is made possible by inserting a collimation checker in the optical axis, eliminating much of the time and labor required to adjust the optical axis and providing a superior quality beam.
◦Beam collimation checkers are also compatible with beams of ultraviolet wavelengths. Contact our Sales Engineer for more information.

More Information

More Information
Name	Scale part
Weight	0.0050lbs
Guide	-
Attention	Incident beam should be limited to Be sure to wear laser safety goggles when checking the optical path and adjusting the optical axis. When observing fringes, do not look at the screen directly from the front and keep your eyes more than 30cm away.
Image Label	Scale part
Material	Aluminum (Black Anodized)
Type	Scale part
Wavelength Range	-
Input Beam Diameter	-
Material of Shearing Plate	-
Plate Thickness	-
Shearing Plate Flatness	-
Fringe Spacing	-
Observing Sreen	-
Material	Aluminum (Black Anodized)

In stock

SKU

SPV-25S

SGD 304.90

Beam collimation checkers (SPV-25/SPUV-25) are shear interferometers of the simplest design, used to examine the parallelism of laser beam expanders (collimators).
