Controllers, High-Resolution Piezomotor Actuators

PDM-ID

In stock

SKU

PDM-ID

Customize product

Filters

Remove all filters

Name

Number of Control Axes

Mounting Thread

Delivery

Price

Add to cart

details

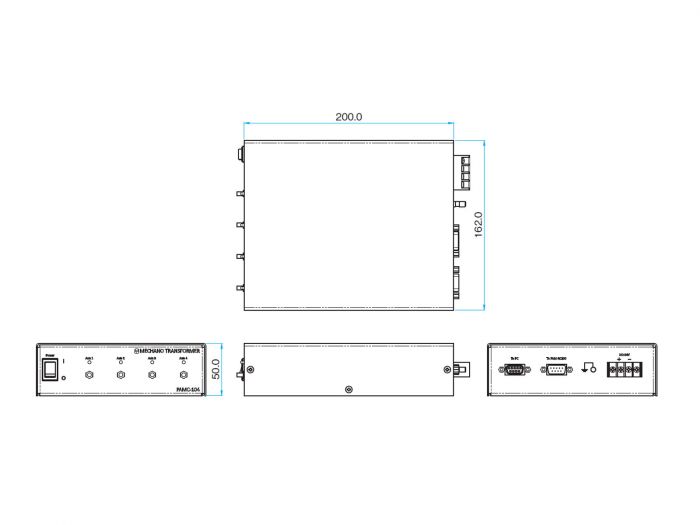

PAMC-104

4 Axes

2 weeks

$1,472.00

Operating Temperature	5 - 40℃
Power Voltage	DC24V0.5A
Ambient Humidity	20 - 80％(without condensation
Storage Temperature	-20 - 60℃
Max. Drive Frequency	1500Hz
External Dimensions (Except projection)	200×162×50mm
Interface	RS232C
Number of Adjustable Axes	4
Manual Operation	Joystick Controller PAM-RC100 (sold separately)
Weight	0.6kg
Included Accessories	CD-ROM (control software) Communication cable RS⇔USB conversion cable

details

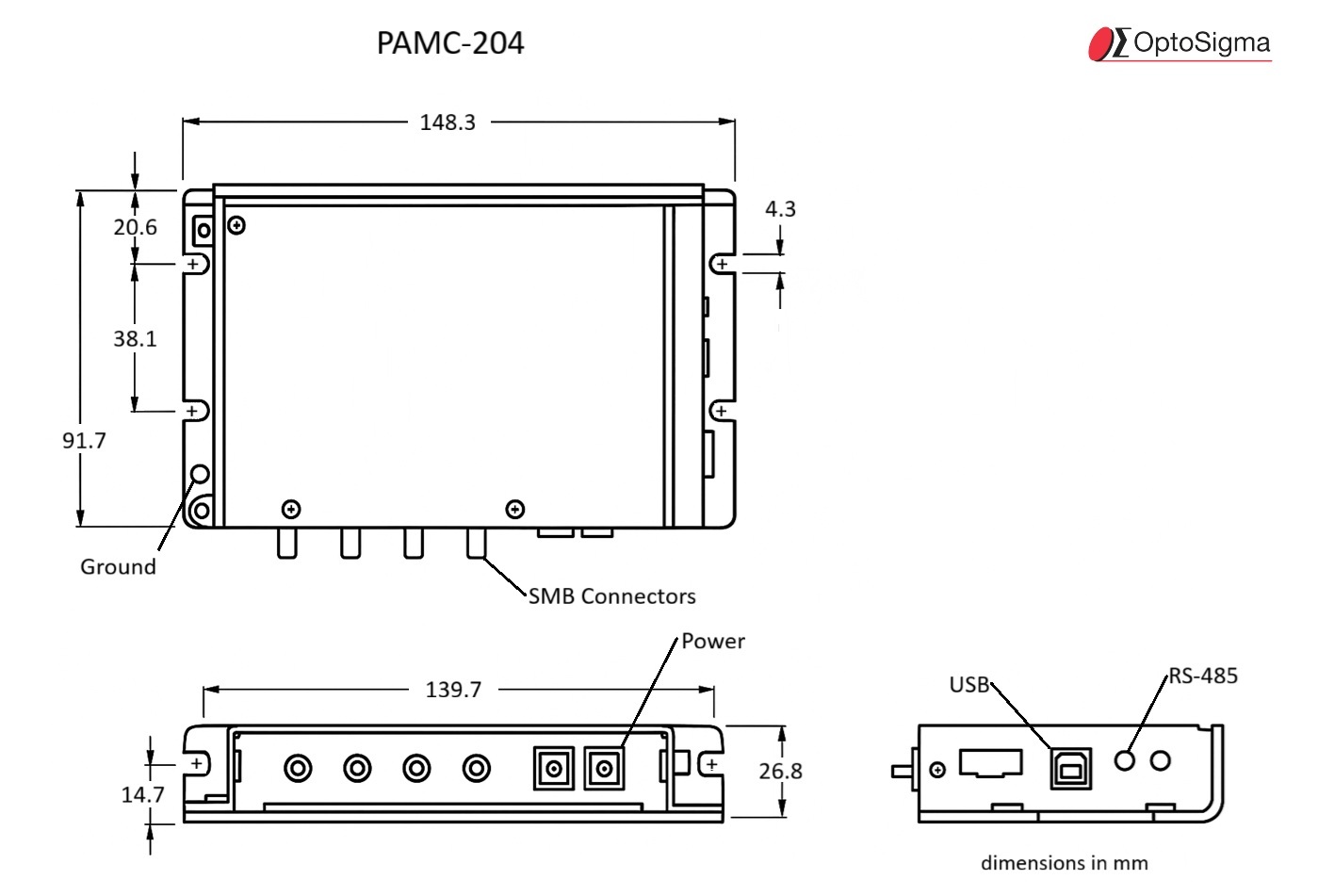

PAMC-204

4 Axes

2 weeks

$1,598.00

Motor Connector Type	SMB Male
Operating Temperature	5 - 40 C
Power Voltage	DC24V, 0.5A
Ambient Humidity	20 to 80 C (without condensation)
Storage Temperature	-20 to 60 C
Max. Drive Frequency	1500Hz
External Dimensions (Except projection)	200x162x50mm
Interface	USB serial/RS-485 protocol
Number of Control Axes	Four, (non simultaneous)
Included Accessories	USB Type A/B communication cable
Controller Mounting	Base Mounting: Four open slots on 139.7 x 38.1 mm pattern, for M4 or 8-32 screws, Front Mounting: Two open slots 139.7 mm apart, for M4 or 8-32 screws

details

PDM-ID-02

2 Axes

in stock

$961.00

Number Channels	2 axes (Can operate simultaneously)
Interface	RS232C, USB (virtual COM) recognized as virtual serial port from external PC
Maximum travel speed	1500pps
Manual Speed Setting	Four Configurable Settings. Default(1p/step, 10p/step, 100p/step, Continuous)
Manual Jog Operation	Toggle switches
Power Voltage	DC24V 2.0A
Operating temperature	5 to 40℃
Storage Temperature	−20 to 60°C
Ambient Humidity	20 to 80% RH (without condensation)
Dimension Ø x L (Except projection)	50x152.5x100mm
Weight	0.6kg
Required Power Supply P/N	AC-ADP-2427
