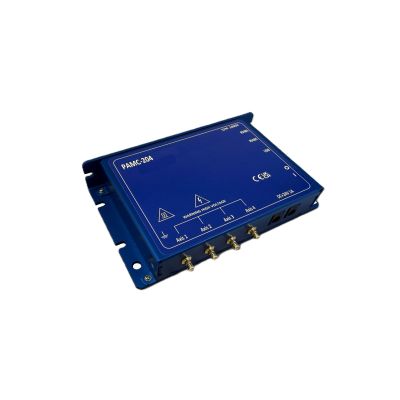

Four-Channel OEM Piezomotor Drive Controller

PAMC-204

External control via USB / RS485 interface. Four-axis controller dedicated to PDM-series piezomotor stages, mounts, and actuators

More Information
Name	Four-Channel OEM Piezomotor Drive Controller
Weight	0.3500kgs
Guide	Up to 32 PAMC-204 controllers can be daisy-chained together using RS-485 link cables. Power can also be daisy chained using DC Jack link cables, but limited by amperage of the power adaptor - about 3 controllers per AC-ADP-2427 power adaptor.
Remark	Only one of the four channels can operate at a time.
Attention	The power supply specification of PAMC-204 is DC +24V, 0.5A. AC adapter (P/N AC-ADP-2427) must be purchased or provided by the customer. Do not connect any products other than piezo drive motors or mounts (PDM-type) to this controller.
Number of Control Axes	4 Axes
Motor Connector Type	SMB Male
Operating Temperature	5 - 40 C
Power Voltage	DC24V, 0.5A
Ambient Humidity	20 to 80 C (without condensation)
Storage Temperature	-20 to 60 C
Max. Drive Frequency	1500Hz
External Dimensions (Except projection)	200x162x50mm
Interface	USB serial/RS-485 protocol
Number of Control Axes	Four, (non simultaneous)
Included Accessories	USB Type A/B communication cable
Controller Mounting	Base Mounting: Four open slots on 139.7 x 38.1 mm pattern, for M4 or 8-32 screws, Front Mounting: Two open slots 139.7 mm apart, for M4 or 8-32 screws

In stock

SKU

PAMC-204

$1,598.00

External control via USB / RS485 interface. Four-axis controller dedicated to PDM-series piezomotor stages, mounts, and actuators
