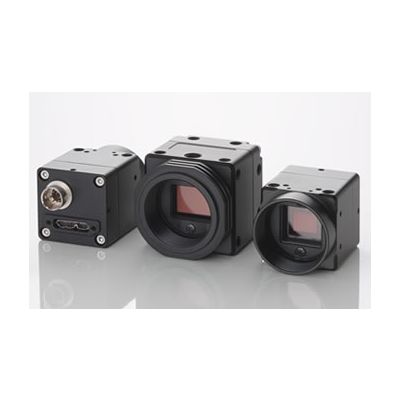

4.0 Mega Pixel Color Camera, C-Mount, USB3.0 Super Speed Interface

STC-MCCM401U3V

Skip to the beginning of the images gallery

Equipped with a high pixel and high speed Sony CMOS "Pregius" sensor. Compact, sturdy, and easy-to-install housing with M4 mounting threds and C-Mount interface.

Details

USB3.0 Super speed (USB3.0 Micro B) Interface

More Information

More Information
Name	4.0 Mega Pixel Color Camera, C-Mount, USB3.0 Super Speed Interface
Weight	0.0520kgs
Guide	Common ◦Various C-mount compatible microscopes are available. See Related Products below.
Attention	The resolution of the monitor display may not increase depending on the resolution of the microscope or observation system. Please make sure that the resolution of the microscope or observation system is smaller than the camera cell size. The camera does not come with a USB cable. Please purchase a USB3.0 cable (CAB-USB3-02) and a PC separately.
Mounting Thread	M4
Spectral Region	Color
Interface	USB3.0 Super Speed
Sensor Size	1in. (4.2 Mega-pixels)
Chip Size (HxV)	11.3x11.3mm
Pixels (HxV)	2048x2048
Pixel-Cell Size (HxV)	5.5x5.5um
Frame Rate	89 FPS (at 8 Bit Output)
Shutter Type	Global
Lens Mount	C-Mount
Accessory	Viewer Software (USB camera driver Image loading software)
Operating System (OS)	Windows 32bit/64bit
External Dimensions<br>(excluding connector/protrusion)	28x28x40mm

In stock

SKU

STC-MCCM401U3V

$1,571.00

Equipped with a high pixel and high speed Sony CMOS "Pregius" sensor. Compact, sturdy, and easy-to-install housing with M4 mounting threds and C-Mount interface.
