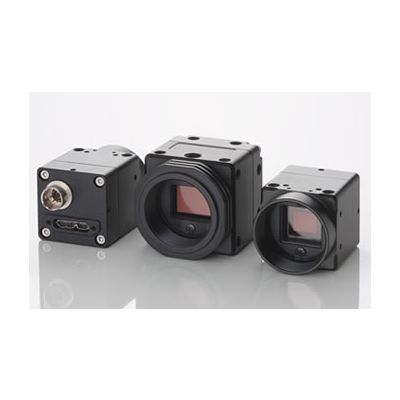

20.0 Mega Pixel Color Camera, C-Mount, USB3.0 Super Speed Interface

STC-MCS2041U3V

Skip to the beginning of the images gallery

Equipped with a high pixel and high speed Sony CMOS "Pregius" sensor. Compact, sturdy, and easy-to-install housing with M4 mounting threds and C-Mount interface.

Details

USB3.0 Super speed (USB3.0 Micro B) Interface

More Information

More Information
Name	20.0 Mega Pixel Color Camera, C-Mount, USB3.0 Super Speed Interface
Weight	0.0770kgs
Guide	Common ◦Various C-mount compatible microscopes are available. See Related Products below.
Attention	The resolution of the monitor display may not increase depending on the resolution of the microscope or observation system. Please make sure that the resolution of the microscope or observation system is smaller than the camera cell size. The camera does not come with a USB cable. Please purchase a USB3.0 cable (CAB-USB3-02) and a PC separately.
Mounting Thread	1/4-20UNC
Spectral Region	Color
Interface	USB3.0 Super Speed
Sensor Size	1in. (20.5 Mega-pixels)
Chip Size (HxV)	13.1x8.8mm
Pixels (HxV)	5472x3648
Pixel-Cell Size (HxV)	2.4x2.4um
Frame Rate	18.5 FPS (at 8 Bit Output)
Shutter Type	Global
Lens Mount	C-Mount
Accessory	Viewer Software (USB camera driver Image loading software)
Operating System (OS)	Windows 32bit/64bit
External Dimensions<br>(excluding connector/protrusion)	35x35x41.5mm

In stock

SKU

STC-MCS2041U3V

$1,565.00

Equipped with a high pixel and high speed Sony CMOS "Pregius" sensor. Compact, sturdy, and easy-to-install housing with M4 mounting threds and C-Mount interface.
