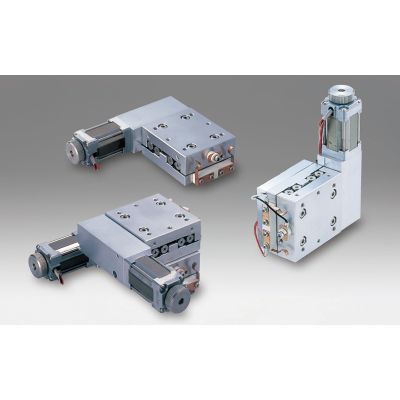

Motorized Aluminum Linear Stage Single Axis 60mm Size 20mm Travel for Vacuum
VSGSP-60(X)
×
Compact motorized stages for use in high vacuum.
Compact, slim body for minimal footprint.
Compact, slim body for minimal footprint.
| Name | Motorized Aluminum Linear Stage Single Axis 60mm Size 20mm Travel for Vacuum |
|---|---|
| Weight | 0.5500kgs |
| Guide |
|
| Attention | - |
| Image Label | Motorized Aluminum Linear Stage Single Axis 60mm Size 20mm Travel for Vacuum |
| Travel | ±20mm |
| Load Capacity | 29.4N (3.0kg) |
| Travel | 20mm |
| Stage Size | 55×60mm |
| Feed Screw | Precision ground screw φ4mm、0.5mm lead |
| Positioning Slide | Crossed roller |
| Stage Material | Aluminium |
| Finish | None |
| Resolution (Half) | 1μm/pulse |
| Resolution (Full) | 0.5μm/pulse |
| MAX Speed | 5mm/sec |
| Positional Repeatability | 6μm |
| Load Capacity | 29.4N(3.0kgf) |
| Lost Motion | 5μm |
| Censer type | Vacuum limit switch |
| Limit Sensor | Contact type |
| Origin Sensor | None |
| Proximity Origin Sensor | None |
In stock
SKU
VSGSP-60(X)
$5,043.00
Customize product
Compact motorized stages for use in high vacuum.
Compact, slim body for minimal footprint.
Compact, slim body for minimal footprint.
