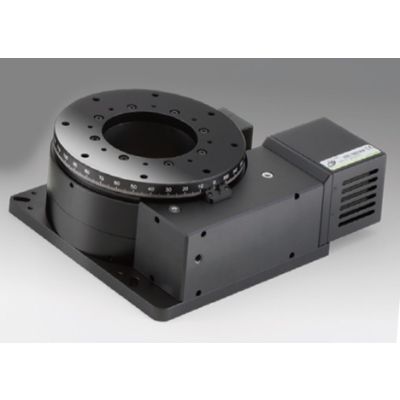

High Load Motorized Stages 160mm Size
HST-160YAW-0B
×
High precision and high stability rotation motorized stages fitted with bearing positioning slide.
The combination of HST Series and 3 axis Stage Controllers HSC-103 can perform low-noise and low-vibration operation, compared with conventional products.
The combination of HST Series and 3 axis Stage Controllers HSC-103 can perform low-noise and low-vibration operation, compared with conventional products.
| Name | High Load Motorized Stages 160mm Size |
|---|---|
| Weight | 8.5000kgs |
| Guide |
|
| Attention |
|
| Image Label | High Load Motorized Stages 160mm Size |
| Rotation Range | Move in the counterclockwise CCW direction to ∞, and stop at near 0 degree (−2.5°) in the clockwise CW direction. |
| Load Capacity | 392N (40.0kg) |
| Rotation Range | Move in the counterclockwise CCW direction to ∞, and stop at near 0 degree (−2.5°) in the clockwise CW direction. |
| Stage Size | φ160mm |
| Travel Mechanism (reduction ratio) | Worm gear (1:144) |
| Positioning Slide | Bearing method |
| Stage Material | Aluminium・Aluminum bronze |
| Resolution (Full) | 0.005°/pulse |
| Resolution (Half) | 0.0025°/pulse |
| Minimum Incremental Motion (refurence) | 0.2mdeg |
| MAX Speed | 30°/sec |
| Positioning Accuracy | 0.1° |
| Positional Repeatability | 0.01° |
| Load Capacity | 392N(40.0kgf) |
| Moment Stiffness | 0.01″/N･cm |
| Lost Motion | 0.01° |
| Backlash | 0.003° |
| Parallelism | 50μm |
| Concentricity | 20μm |
| Wobble | 0.01mm |
| Sensor Part Number | Micro photo sensor : PM-F25(SUNX Co., Ltd.) |
| Limit Sensor | Equipped (NORMAL CLOSE) |
| Origin Sensor | None |
| Proximity Origin Sensor | None |
In stock
SKU
HST-160YAW-0B
$5,821.00
Customize product
High precision and high stability rotation motorized stages fitted with bearing positioning slide.
The combination of HST Series and 3 axis Stage Controllers HSC-103 can perform low-noise and low-vibration operation, compared with conventional products.
The combination of HST Series and 3 axis Stage Controllers HSC-103 can perform low-noise and low-vibration operation, compared with conventional products.
