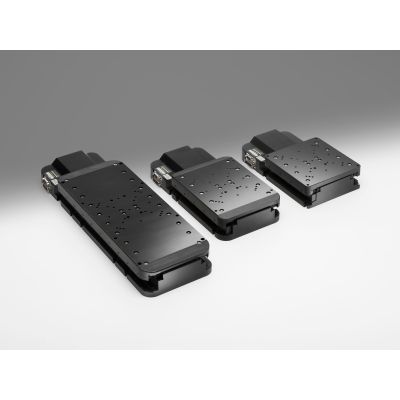

Precision Motorized Stages - 5 Phase Stepping Motor

HST-200X

High precision X axis stages fitted with precision ball screws and precision crossed roller.

More Information
Name	Precision Motorized Stages - 5 Phase Stepping Motor
Weight	18.7000kgs
Guide	Contact our Sales Division if you desire to change motors, etc. Or, use the motorized stage system question sheet.(WEB Reference Catalog Code/W9500) (Question Sheet) Two single axis stages can be sent to OptoSigma to be assembled, aligned and tested for a nominal cost.
Attention	We will assemble your X axis stage with a newly purchased X axis stage at a separate cost.
Image Label	Precision Motorized Stages - 5 Phase Stepping Motor
Travel	200mm
Load Capacity	392N (40.0kg)
Stage Size	165×420mm
Feed Screw	Ball screw diameter φ10mm、2mm lead
Positioning Slide	Crossed roller
Stage Material	Steel
Resolution (Full)	4μm/pulse
Resolution (Half)	2μm/pulse
Minimum Incremental Motion (refurence)	0.1μm
MAX Speed	20mm/sec
Positioning Accuracy	8μm
Positional Repeatability	2μm
Load Capacity	392N(40.0kgf)
Moment Stiffness / Pitch	0.01″/N･cm
Moment Stiffness / Yaw	0.01″/N･cm
Moment Stiffness / Roll	0.005″/N･cm
Lost Motion	1μm
Backlash	1μm
Parallelism	100μm
Running Parallelism	20μm
Pitch	20″
Yaw	20″
Sensor Part Number	Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor	Equipped (NORMAL CLOSE)
Origin Sensor	Equipped (NORMAL OPEN)
Proximity Origin Sensor	Equipped (NORMAL OPEN)

In stock

SKU

HST-200X

$5,098.00

High precision X axis stages fitted with precision ball screws and precision crossed roller.
