High Load Linear Stages 1 Axis (X/Y)

HST-X

High Load Linear Stages 1 Axis (X/Y)
In stock
SKU
HST-X
High precision X axis stages fitted with precision ball screws and precision crossed roller.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Travel Load Capacity Delivery Price Add to cart
i
Precision Motorized Stages - 5 Phase Stepping Motor

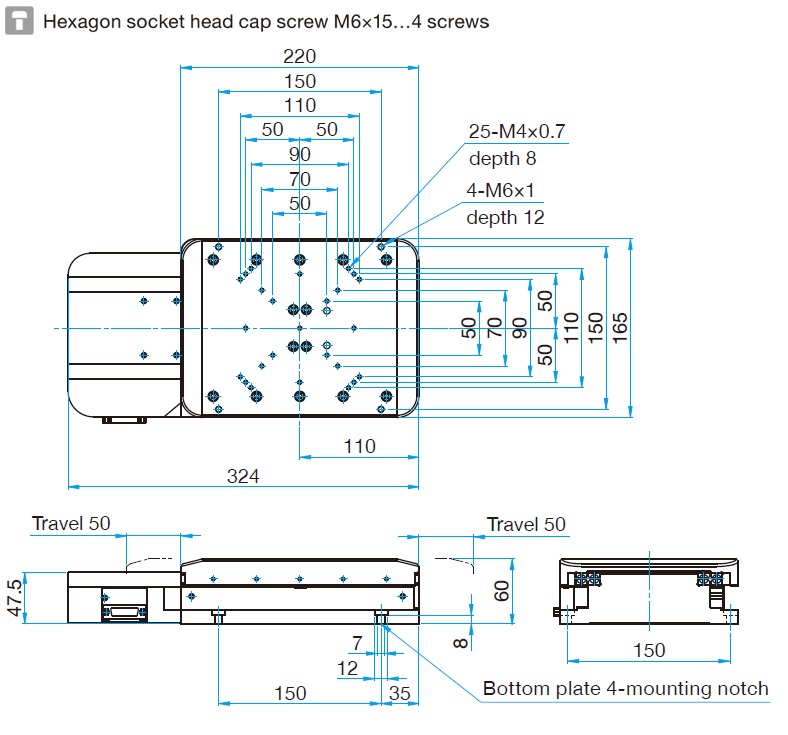

HST-100X
100mm 392N (40.0kg)
6-12 weeks
$3,978.00
Stage Size 165×220mm
Feed Screw Ball screw diameter φ10mm、2mm lead
Positioning Slide Crossed roller
Stage Material Steel
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
Minimum Incremental Motion (refurence) 0.1μm
MAX Speed 10mm/sec
Positioning Accuracy 7μm
Positional Repeatability 2μm
Load Capacity 392N(40.0kgf)
Moment Stiffness / Pitch 0.01″/N・cm
Moment Stiffness / Yaw 0.01″/N・cm
Moment Stiffness / Roll 0.005″/N・cm
Lost Motion 1μm
Backlash 1μm
Parallelism 70μm
Running Parallelism 10μm
Pitch 20″
Yaw 20″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Precision Motorized Stages - 5 Phase Stepping Motor

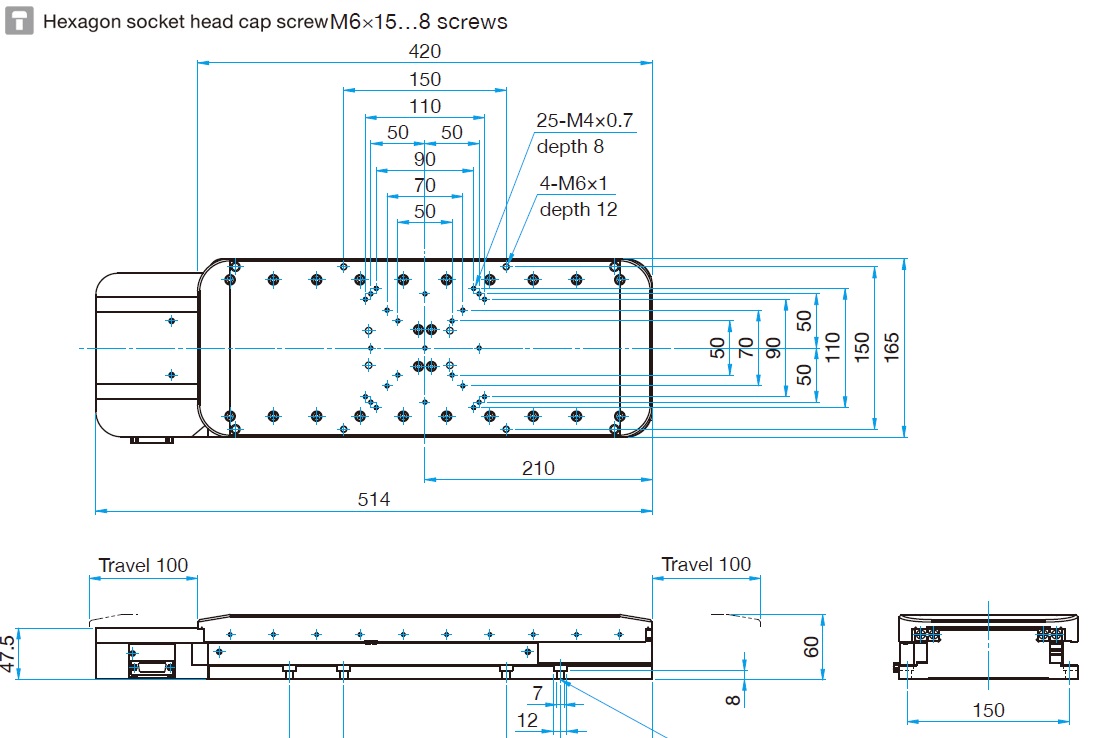

HST-200X
200mm 392N (40.0kg)
6-12 weeks
$4,998.00
Stage Size 165×420mm
Feed Screw Ball screw diameter φ10mm、2mm lead
Positioning Slide Crossed roller
Stage Material Steel
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
Minimum Incremental Motion (refurence) 0.1μm
MAX Speed 20mm/sec
Positioning Accuracy 8μm
Positional Repeatability 2μm
Load Capacity 392N(40.0kgf)
Moment Stiffness / Pitch 0.01″/N・cm
Moment Stiffness / Yaw 0.01″/N・cm
Moment Stiffness / Roll 0.005″/N・cm
Lost Motion 1μm
Backlash 1μm
Parallelism 100μm
Running Parallelism 20μm
Pitch 20″
Yaw 20″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Precision Motorized Stages - 5 Phase Stepping Motor
HST-50X
50mm 392N (40.0kg)
6-12 weeks
$3,039.60
Stage Size 165×165mm
Feed Screw Ball screw diameter φ10mm、2mm lead
Positioning Slide Crossed roller
Stage Material Steel
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
Minimum Incremental Motion (refurence) 0.1μm
MAX Speed 10mm/sec
Positioning Accuracy 5μm
Positional Repeatability 2μm
Load Capacity 392N(40.0kgf)
Moment Stiffness / Pitch 0.01″/N・cm
Moment Stiffness / Yaw 0.01″/N・cm
Moment Stiffness / Roll 0.005″/N・cm
Lost Motion 1μm
Backlash 1μm
Parallelism 50μm
Running Parallelism 10μm
Pitch 15″
Yaw 15″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)

You must be logged in to ask questions

◦The combination of HST Series and 3 axis Stage Controllers HSC-103 can perform low-noise and low-vibration operation, compared with conventional products.
◦Steel body offers excellent stiffness and high load capacity.
