Motorized Aluminum Linear Stage Travel 50mm (Motor Left Side)

TAMM100-50C

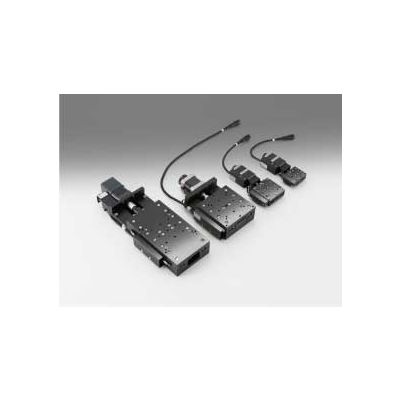

Motorized crossed roller stages that combine compactness, low-profile and high durability.

More Information
Name	Motorized Aluminum Linear Stage Travel 50mm (Motor Left Side)
Weight	1.9000kgs
Guide	Due to the motor offset, a spacer is required when mounting the stage on a flat surface (MSP-40 .(WEB Reference Catalog Code/W6035), MSP-60 .(WEB Reference Catalog Code/W6036) or Contact our Sales Divisionfor custom spacers). After purchasing two X axis stages, to assemble them into an XY axis stage, assembly adjustment cost and performance inspection cost will be charged separately. Contact our Sales Division for other customization options including alternate motors. Or, use the motorized stage system.(WEB Reference Catalog Code/W9500)(Question Sheet)
Attention	-
Image Label	Motorized Aluminum Linear Stage Travel 50mm (Motor Left Side)
Travel	50mm
Load Capacity	98N (10.0kg)
Type	Normal
Travel	50mm
Stage Size	100×100mm
Feed Screw	Ball screw diameter φ8mm、1mm lead
Positioning Slide	Crossed roller
Stage Material	Aluminium
Finish	Black anodized
Resolution (Full)	2μm/pulse
Resolution (Half)	1μm/pulse
Minimum Incremental Motion (refurence)	0.2μm
MAX Speed	10mm/sec
Positioning Accuracy	6μm
Positional Repeatability	1μm
Load Capacity	98N(10.0kgf)
Moment Stiffness	0.05"/N･cm
Lost Motion	1μm
Backlash	1μm
Parallelism	30μm
Running Parallelism	10μm
Pitch	20″
Yaw	15″
Sensor Part Number	Micro photo sensor ：PM-L24(SUNX Co., Ltd.)：Limit sensor、origin sensor
Limit Sensor	Equipped (NORMAL CLOSE)
Origin Sensor	Equipped (NORMAL OPEN)
Proximity Origin Sensor	None

In stock

SKU

TAMM100-50C

$2,311.00

Motorized crossed roller stages that combine compactness, low-profile and high durability.
