2-Phase Stepper-Motor Goniometers

OSMS(RE)-A

Out of stock

SKU

OSMS(RE)-A

Based on our CE-compliant OSMS-A Series α Axis Motorized Extended Guide Goniometer, we have newly added a model equipped with a "2-phase stepping motor with rotary encoder" to our lineup. A rotary encoder built into the motor enables "Step-out detection" with a dedicated controller.

Add to Wish List

Customize product

Filters

Enabled filters :

Remove all filters

Name

Stage Size

Angle Range

Delivery

Price

Add to cart

details

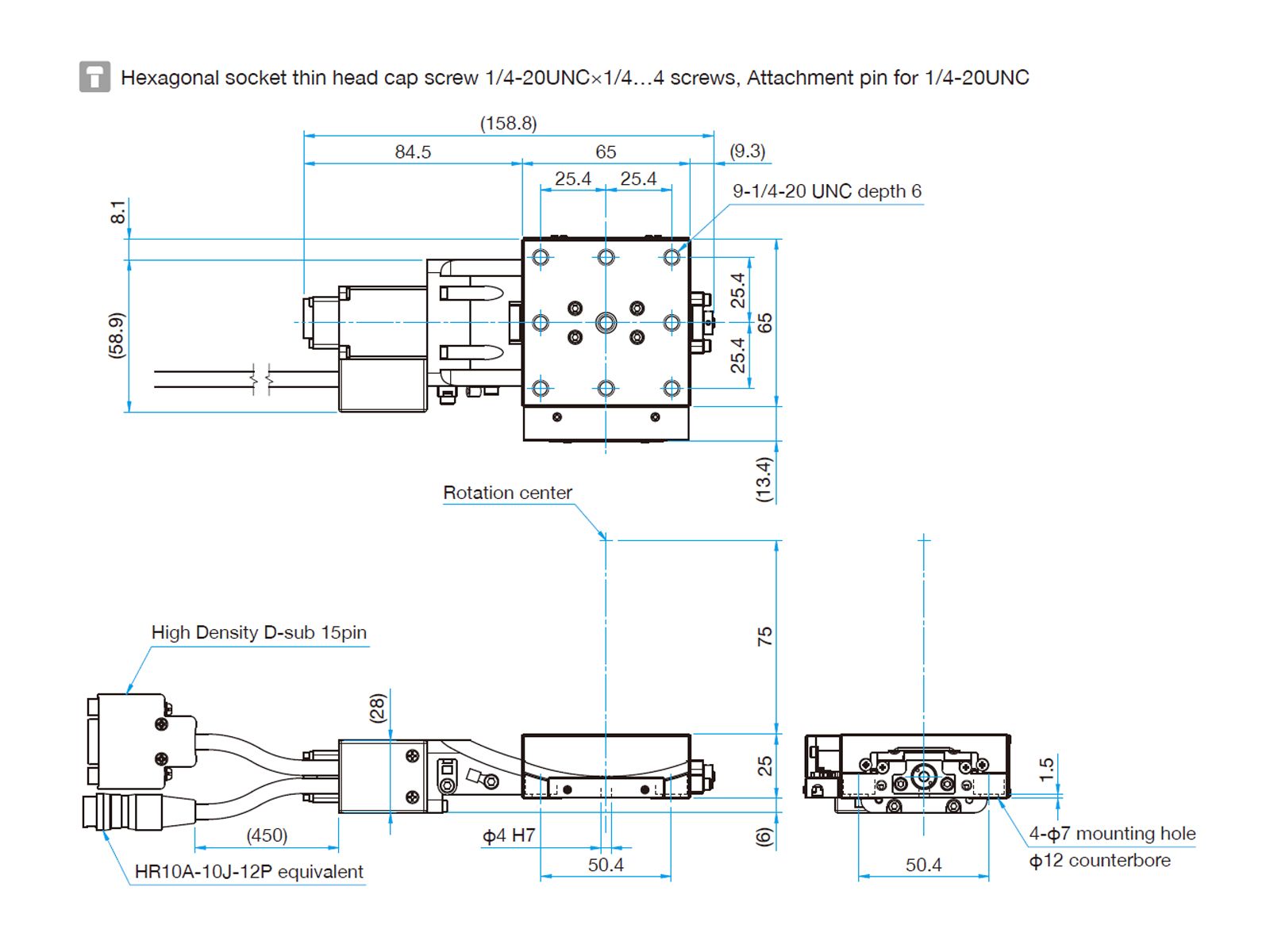

OSMS(RE)-65A75-INCH-M2

65×65mm

6-12 weeks

$2,136.00

Main Material	SUS440C Stainless Steel
Finish	Super Black Chrome
Rotation Center Tolerance	Within 10um Diameter
Position Repeatability	0.004 Degree
Lost Motion	0.02 Degree
Position Sensors	Limit and Origin
Motor Type	2-Phase Stepping Motor 1.2A/phase
Rotary Encoder Resolution	500 pulses /rotation
Motor Step Angle	1.8 Degrees
Compatible Controllers	(HIT-MV and HIT-SA-M2) or SHRC-203-M2
Driver/Encoder cables	D15H12A-RC / GSEF-CA

details

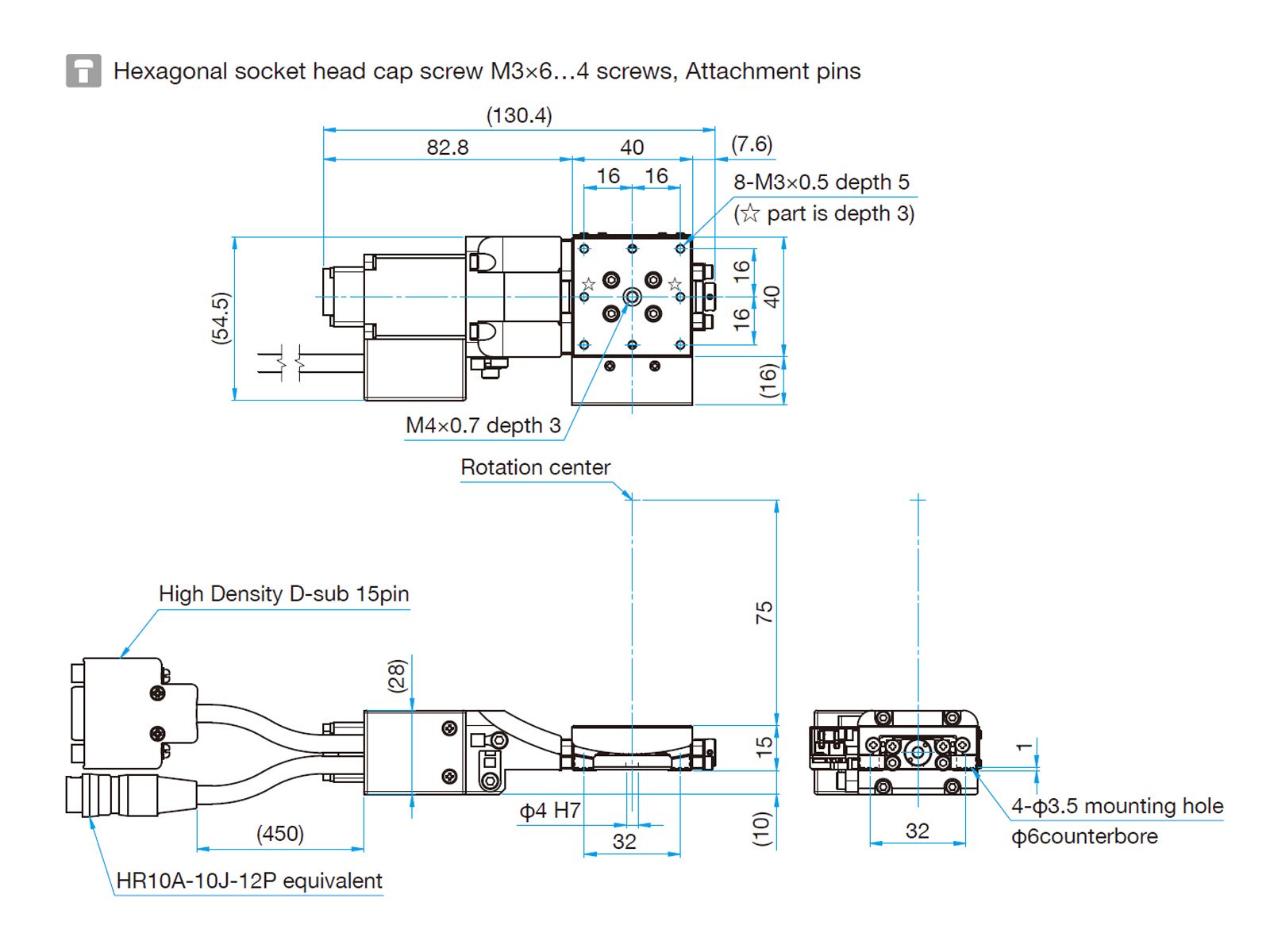

OSMS(RE)-40A75-M2

40×40mm

±6°

6-12 weeks

$2,018.00

Main Material	SUS440C Stainless Steel
Finish	Super Black Chrome
Rotation Center Tolerance	Within 10um Diameter
Position Repeatability	0.004 Degree
Lost Motion	0.02 Degree
Position Sensors	Limit and Origin
Motor Type	2-Phase Stepping Motor 1.2A/phase
Rotary Encoder Resolution	500 pulses /rotation
Motor Step Angle	1.8 Degrees
Compatible Controllers	(HIT-MV and HIT-SA-M2) or SHRC-203-M2
Driver/Encoder cables	D15H12A-RC / GSEF-CA

details

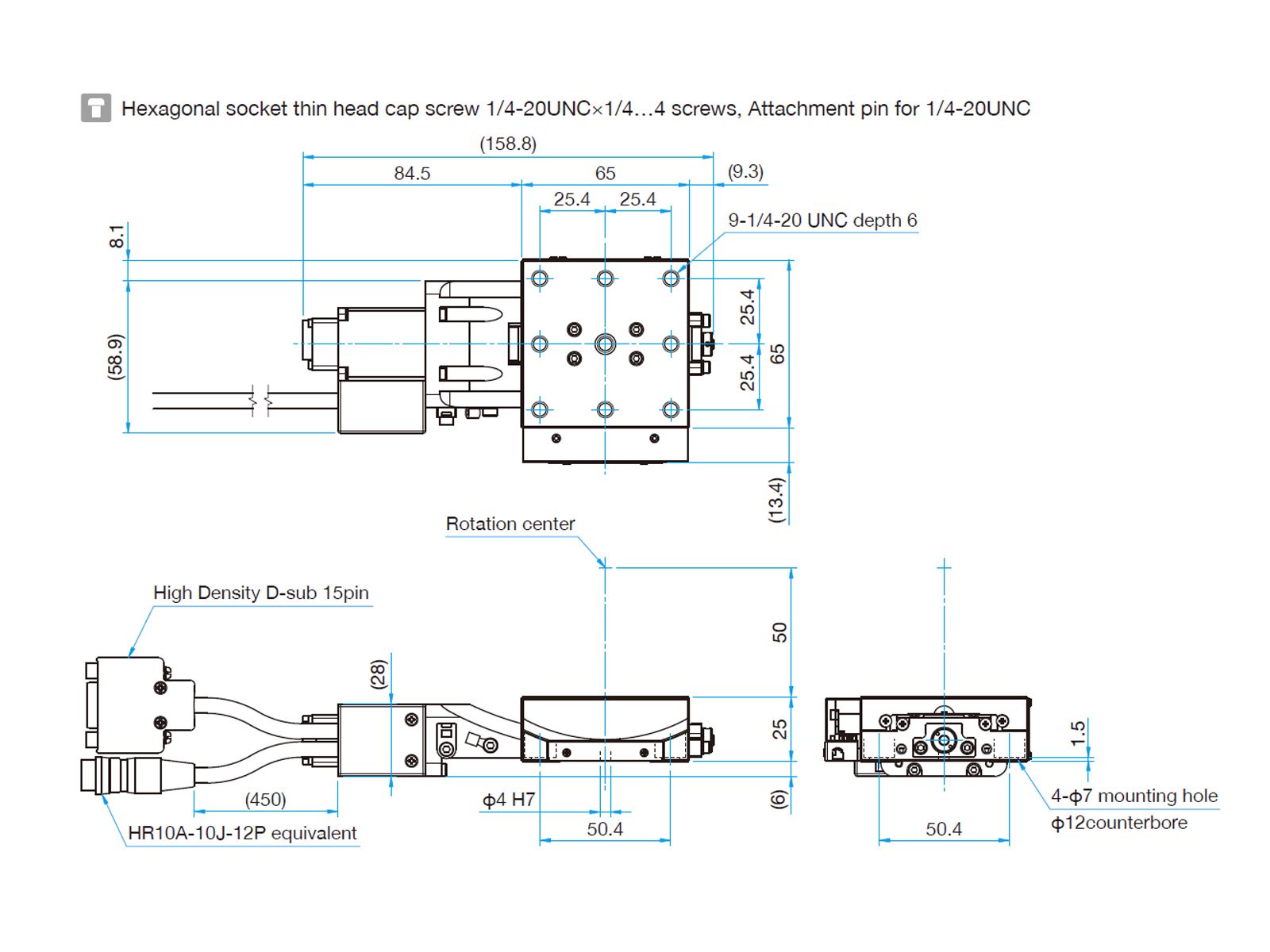

OSMS(RE)-65A50-INCH-M2

65×65mm

6-12 weeks

$2,136.00

Main Material	SUS440C Stainless Steel
Finish	Super Black Chrome
Rotation Center Tolerance	Within 10um Diameter
Position Repeatability	0.004 Degree
Lost Motion	0.02 Degree
Position Sensors	Limit and Origin
Motor Type	2-Phase Stepping Motor 1.2A/phase
Rotary Encoder Resolution	500 pulses /rotation
Motor Step Angle	1.8 Degrees
Compatible Controllers	(HIT-MV and HIT-SA-M2) or SHRC-203-M2
Driver/Encoder cables	D15H12A-RC / GSEF-CA

details

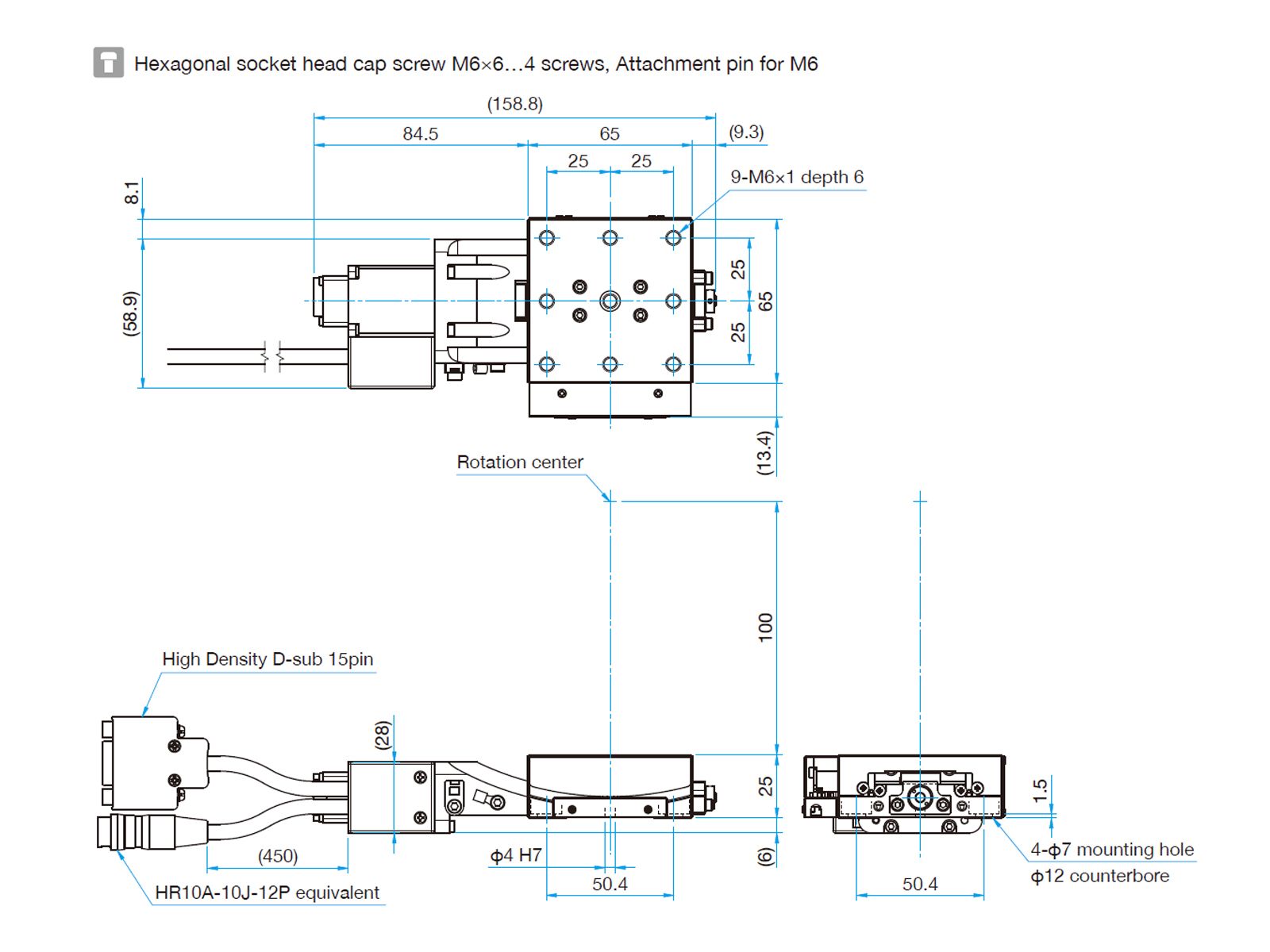

OSMS(RE)-65A100-M6-M2

65×65mm

±10°

2 weeks

$2,136.00

Main Material	SUS440C Stainless Steel
Finish	Super Black Chrome
Rotation Center Tolerance	Within 10um Diameter
Position Repeatability	0.004 Degree
Lost Motion	0.02 Degree
Position Sensors	Limit and Origin
Motor Type	2-Phase Stepping Motor 1.2A/phase
Rotary Encoder Resolution	500 pulses /rotation
Motor Step Angle	1.8 Degrees
Compatible Controllers	(HIT-MV and HIT-SA-M2) or SHRC-203-M2
Driver/Encoder cables	D15H12A-RC / GSEF-CA

details

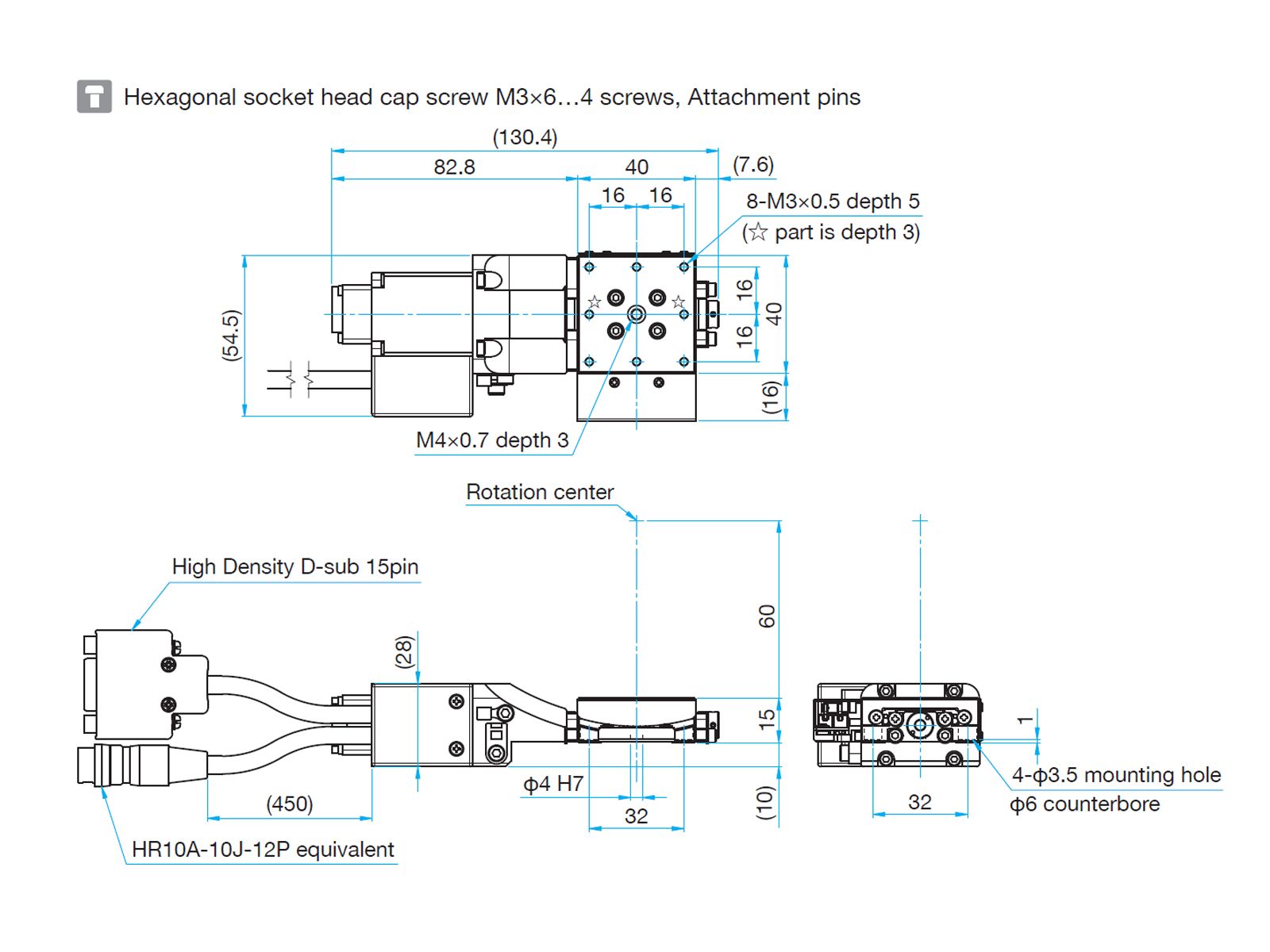

OSMS(RE)-40A60-M2

40×40mm

±8°

2 weeks

$2,018.00

Main Material	SUS440C Stainless Steel
Finish	Super Black Chrome
Rotation Center Tolerance	Within 10um Diameter
Position Repeatability	0.004 Degree
Lost Motion	0.02 Degree
Position Sensors	Limit and Origin
Motor Type	2-Phase Stepping Motor 1.2A/phase
Rotary Encoder Resolution	500 pulses /rotation
Motor Step Angle	1.8 Degrees
Compatible Controllers	(HIT-MV and HIT-SA-M2) or SHRC-203-M2
Driver/Encoder cables	D15H12A-RC / GSEF-CA

details

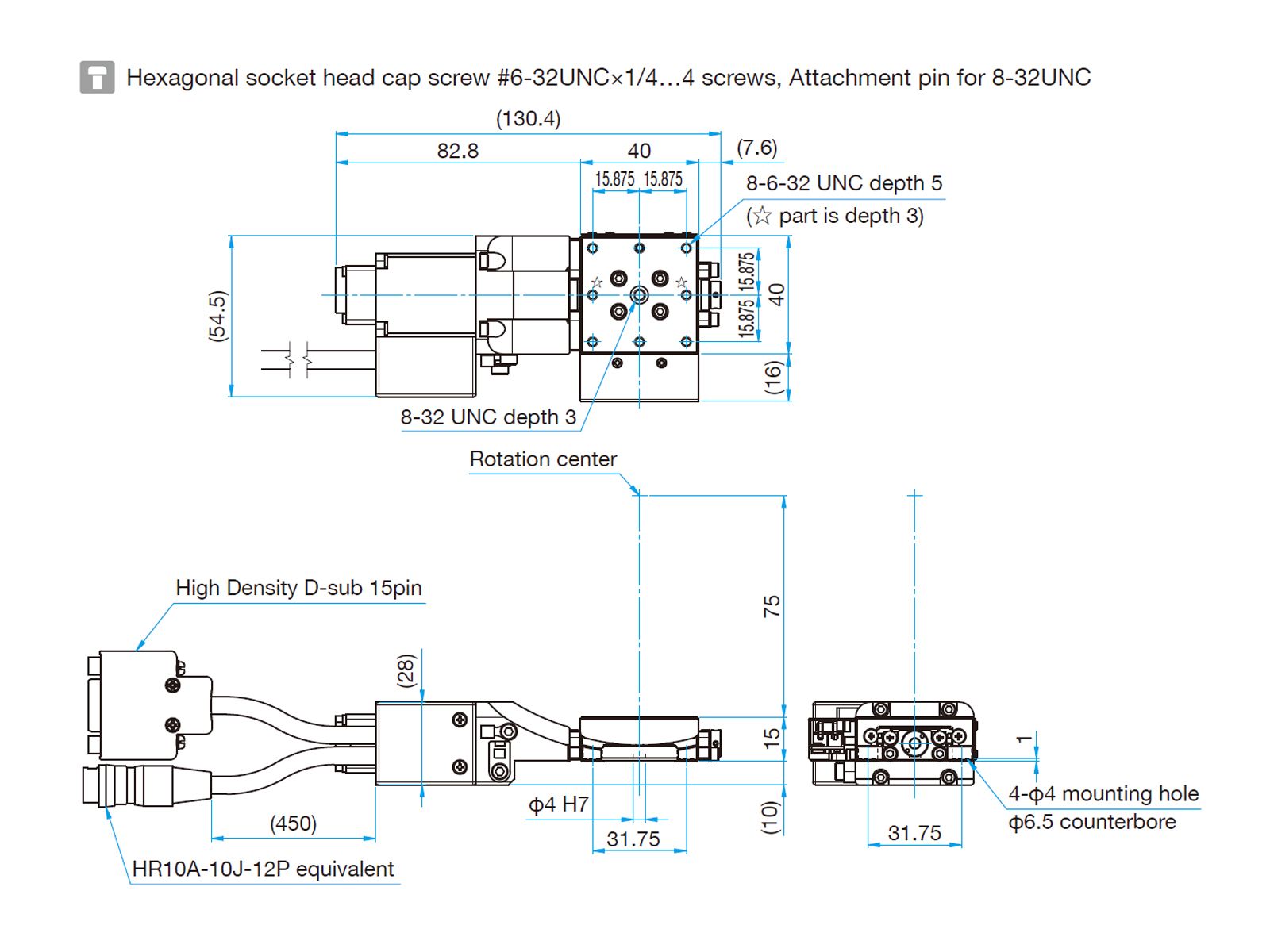

OSMS(RE)-40A75-INCH-M2

40×40mm

±6°

6-12 weeks

$2,018.00

Main Material	SUS440C Stainless Steel
Finish	Super Black Chrome
Rotation Center Tolerance	Within 10um Diameter
Position Repeatability	0.004 Degree
Lost Motion	0.02 Degree
Position Sensors	Limit and Origin
Motor Type	2-Phase Stepping Motor 1.2A/phase
Rotary Encoder Resolution	500 pulses /rotation
Motor Step Angle	1.8 Degrees
Compatible Controllers	(HIT-MV and HIT-SA-M2) or SHRC-203-M2
Driver/Encoder cables	D15H12A-RC / GSEF-CA

details

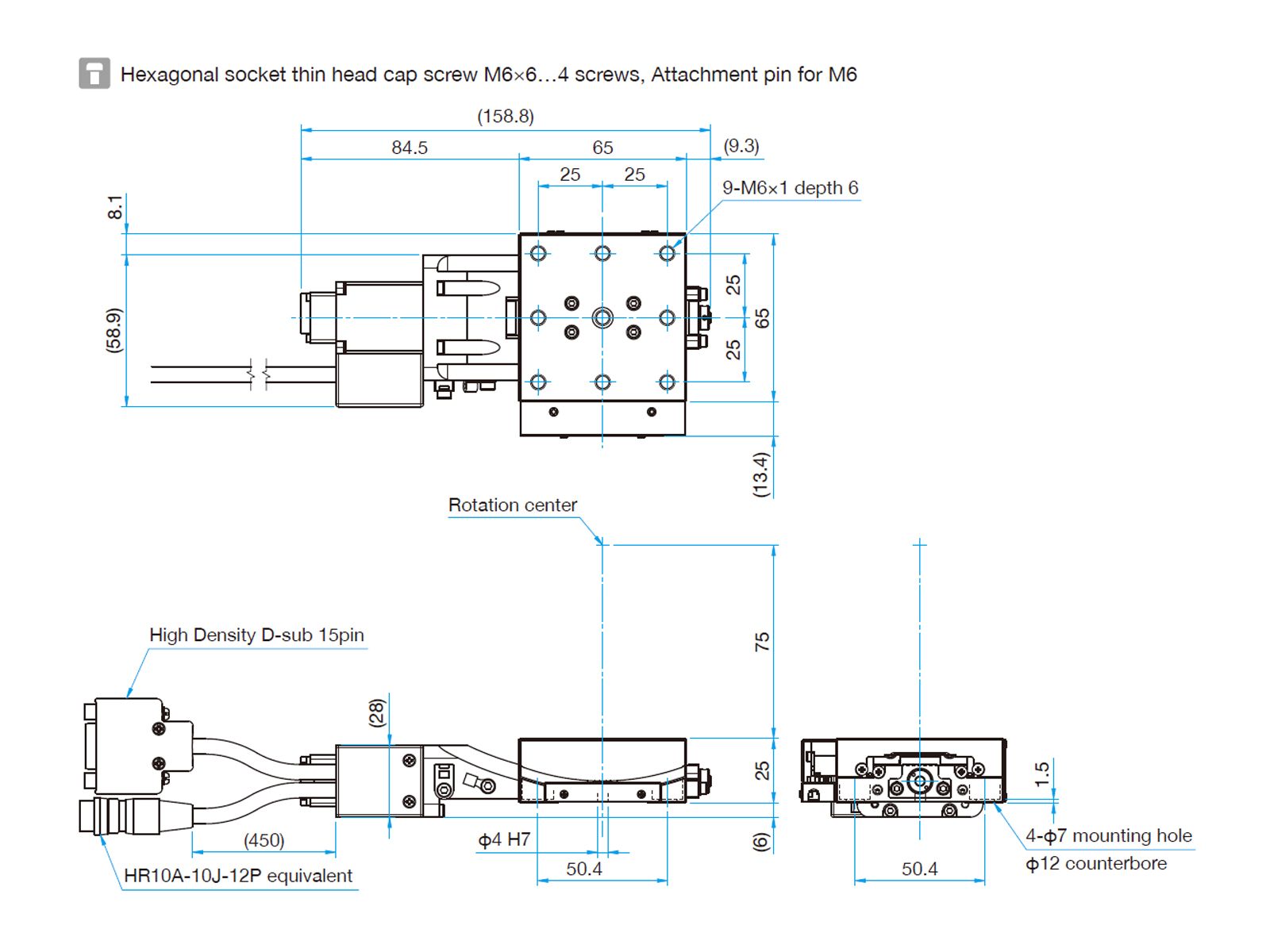

OSMS(RE)-65A75-M6-M2

65×65mm

6-12 weeks

$2,136.00

Main Material	SUS440C Stainless Steel
Finish	Super Black Chrome
Rotation Center Tolerance	Within 10um Diameter
Position Repeatability	0.004 Degree
Lost Motion	0.02 Degree
Position Sensors	Limit and Origin
Motor Type	2-Phase Stepping Motor 1.2A/phase
Rotary Encoder Resolution	500 pulses /rotation
Motor Step Angle	1.8 Degrees
Compatible Controllers	(HIT-MV and HIT-SA-M2) or SHRC-203-M2
Driver/Encoder cables	D15H12A-RC / GSEF-CA

details

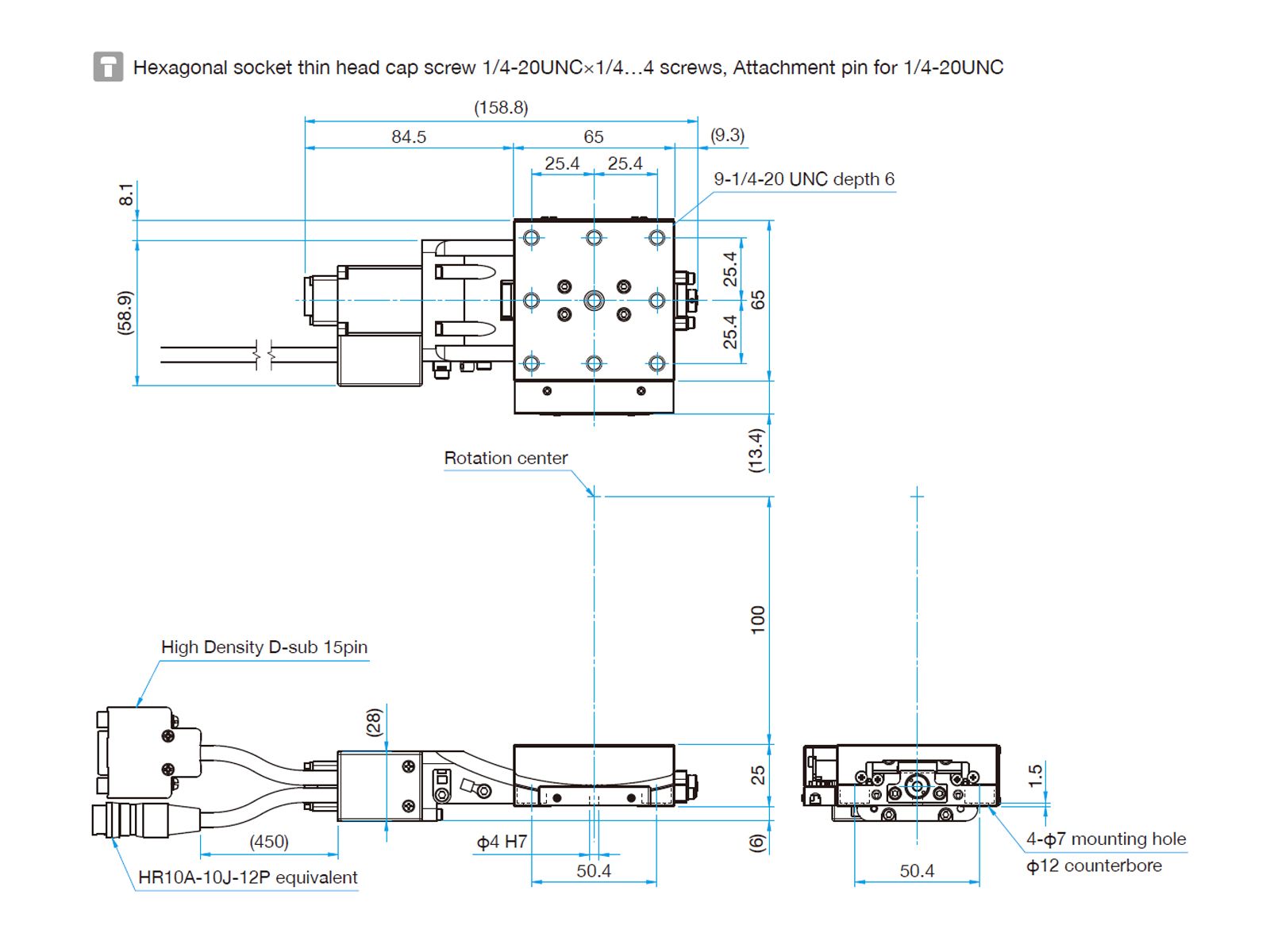

OSMS(RE)-65A100-INCH-M2

65×65mm

±10°

6-12 weeks

$2,136.00

Main Material	SUS440C Stainless Steel
Finish	Super Black Chrome
Rotation Center Tolerance	Within 10um Diameter
Position Repeatability	0.004 Degree
Lost Motion	0.02 Degree
Position Sensors	Limit and Origin
Motor Type	2-Phase Stepping Motor 1.2A/phase
Rotary Encoder Resolution	500 pulses /rotation
Motor Step Angle	1.8 Degrees
Compatible Controllers	(HIT-MV and HIT-SA-M2) or SHRC-203-M2
Driver/Encoder cables	D15H12A-RC / GSEF-CA

details

OSMS(RE)-40A60-INCH-M2

40×40mm

±8°

6-12 weeks

$2,018.00

Main Material	SUS440C Stainless Steel
Finish	Super Black Chrome
Rotation Center Tolerance	Within 10um Diameter
Position Repeatability	0.004 Degree
Lost Motion	0.02 Degree
Position Sensors	Limit and Origin
Motor Type	2-Phase Stepping Motor 1.2A/phase
Rotary Encoder Resolution	500 pulses /rotation
Motor Step Angle	1.8 Degrees
Compatible Controllers	(HIT-MV and HIT-SA-M2) or SHRC-203-M2
Driver/Encoder cables	D15H12A-RC / GSEF-CA

details

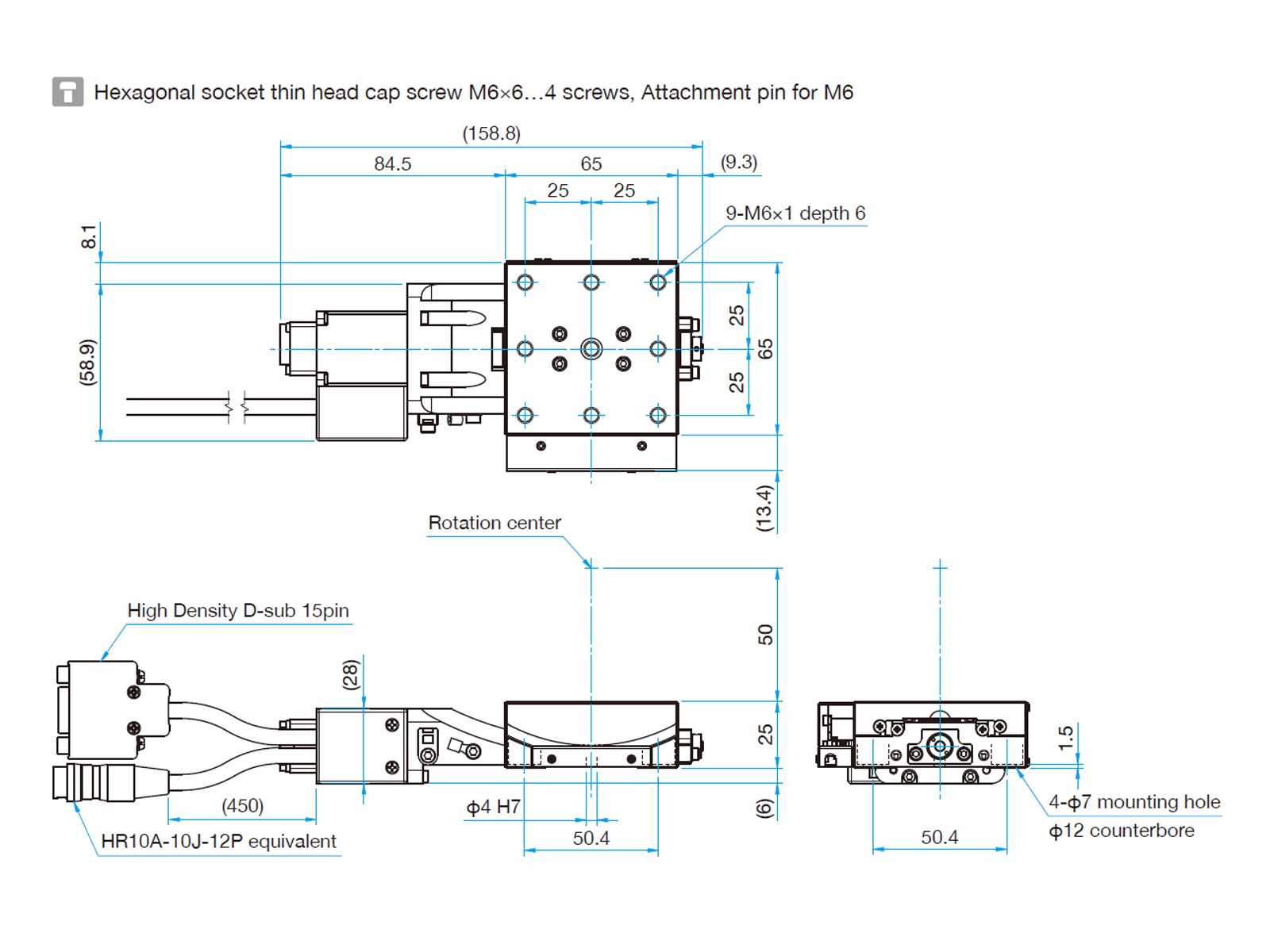

OSMS(RE)-65A50-M6-M2

65×65mm

6-12 weeks

$2,136.00

Main Material	SUS440C Stainless Steel
Finish	Super Black Chrome
Rotation Center Tolerance	Within 10um Diameter
Position Repeatability	0.004 Degree
Lost Motion	0.02 Degree
Position Sensors	Limit and Origin
Motor Type	2-Phase Stepping Motor 1.2A/phase
Rotary Encoder Resolution	500 pulses /rotation
Motor Step Angle	1.8 Degrees
Compatible Controllers	(HIT-MV and HIT-SA-M2) or SHRC-203-M2
Driver/Encoder cables	D15H12A-RC / GSEF-CA
