3-Axis, Closed-Loop, Stepper Motor Controllers

SHRC

More about
3-Axis, Closed-Loop, Stepper Motor Controllers
In stock
SKU
SHRC
Cloosd-loop stage controllers with three axes of control for 2- or 5-phase stepping motors.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name
Stage Size
Driving Current
Driving Motor
Number of Control Axes
Delivery Price Add to cart
details
SHRC-203-M2
φ40mm 0.2 - 2.8A/Phase 2-phase stepping motor 3 Axes
2 weeks
$5,544.00
Power Source AC100 - 240V±10% 50/60Hz
Current Consumption 2A
Operating Temperature 5 - 40℃
Storage Temperature -20 - 60℃
Ambient Humidity 20 - 80%RH (without condensation)

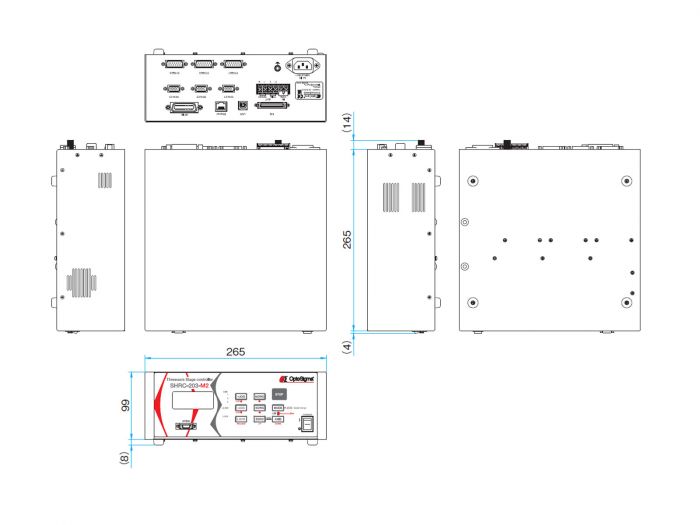

External Dimensions (W×H×D) 265×99×265mm
Coordinate Indication Range ±999,999,999
Max. Travel to Set -2147483648～ ＋2147483647 Pulse
Max. Driving Speed 1,000,000pps
Min. Driving Speed 1pps
Acceleration/Deceleration Time 1～1,000ms
Micro-step (Max. Division) 8,000
Interface GP-IB / USB / Ethernet
details
SHRC-203
0.3 − 1.4A/phase 5-phase stepping motor 3 Axes
2 weeks
$5,143.00
Power Requirements 100-240VAC +/-10%, 50/60Hz
Current Consumption 2A
Operating / Storage Temperatures 5 to 40C/-20 to 60C
Operating Humidity (without condensation) 20% to 80%RH
External Dimensions 265x99x265mm
Coordinate Indication Range +/-999,999,999
Maximum Travel to Set From -2,147,483,648 to 2,147,483,647 (pulses)
Min/Max Driving Speed 1 to 1 million pulses per second
Acceleration/ Deceleration 1-1,000ms
Micro-Stepping Highest Division 8,000 micro pulses/step
Control Interfaces Ethernet, GP-IB, USB
Main Function Summary Controller with micro-step driver, Stored program control, Glass scale feedback control, Circular and linear interpolation, Absolute and relative position drive, Jog operation, Machine and theoretical origin, Deceleration and emergency stop, Speed setting, Motor free / hold
Input/Output Specs Proximity and origin sensors, CW(+) and CCW(-) limits, 6 general purpose inputs and 6 general purpose outputs, 18 control inputs and 5 control outputs, Trigger output

You must be logged in to ask questions

Multiple operation modes:
Computer control using GP-IB/USB/Ethernet interfaces
Manually operated using the optional control pad (CJ-200A) or dedicated controllers (JS-301, JB-401)
Internally programmed using eight banks of stored programs.
Remotely operated by other devices using TTL I/O.
Full closed loop control is possible when used in combination with stages equiped with built-in glass scales.
