60X60mm Dovetail Bearing, Brass, Z-Axis Stage, (Vertical Platform/Horizontal Base) Coarse/Fine Rack&Pinion Drive, 18mm, M4 Threads, Right-handed

TAR-60553D

Z axis rack and pinion dovetail translation stages, suitable for frequent use that requires quick movement and long travel.

More Information
Name	60X60mm Dovetail Bearing, Brass, Z-Axis Stage, (Vertical Platform/Horizontal Base) Coarse/Fine Rack&Pinion Drive, 18mm, M4 Threads, Right-handed
Weight	0.5500kgs
Guide	-
Attention	Micrometer brackets may extend above the top surface of some stages. Check drawings for more information. Note that some samples might not be able to be fixed on the stage depending on their shapes, or required travel might not be ensured.

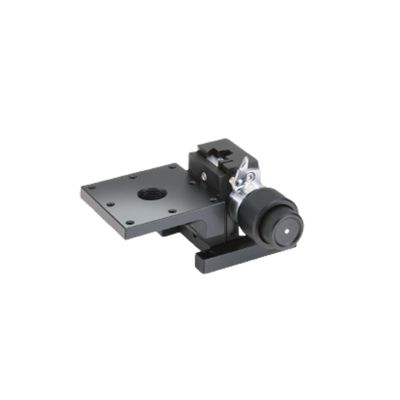

Image Label	Rack and Pinion Dovetail Z Stage 60×60mm Size Metric Threads 18mm Travel with Coarse and Fine Adjustment
Stage Size	60×60mm
Travel	Coarse：+18mm・-0mm　Fine：+18mm・-0mm　Fine
Load Capacity	14.7N (1.5kg)
Lead of Actuator	Coarse：about 20mm Fine：about 2.5mm
Vernier Readable Resolution	0.1mm
Guide Method	Dovetail method
Primary Material	Brass
Finish	Super black chrome
Travel Accuracy / Straightness	20μm
Max. Moment Capacity / Pitch	1.5N･m
Max. Moment Capacity / Roll	1.0N･m
Moment Stiffness / Pitch	0.61″/N･cm
Parallelism	80μm

In stock

SKU

TAR-60553D

$431.00

Z axis rack and pinion dovetail translation stages, suitable for frequent use that requires quick movement and long travel.
