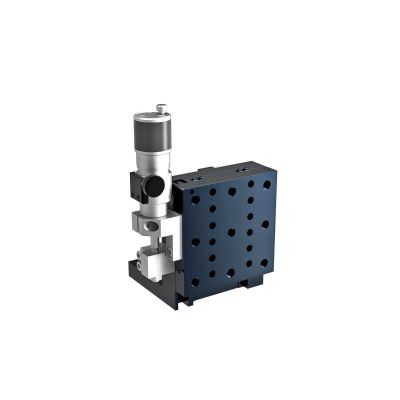

65X65mm Crossed-Roller Bearing, Aluminum, Z-Axis Stage, (Vertical Platform/Horizontal Base) Side Sub-Micron Worm-screw Micrometer, +/-6.5mm, M6 Threads

TAM-653LWP-M6

Light-weight Z axis aluminum stages with integrated angle bracket.
Crossed roller guide enable smooth travel.

See the Right Handed version of this product

More Information
Name	65X65mm Crossed-Roller Bearing, Aluminum, Z-Axis Stage, (Vertical Platform/Horizontal Base) Side Sub-Micron Worm-screw Micrometer, +/-6.5mm, M6 Threads
Weight	0.4700kgs
Guide	The part number suffix FP indicates products with fine-pitch screws instead of standard micrometers. Fine Pitch screws have a screw pitch of 0.25mm and require a hex wrench or the optional hex wrench with knob (KCL) for adjustment.(WEB Reference Catalog Code/W8008-3)
Attention	-
Image Label	Aluminum Crossed Roller X Stage Size Metric Threads
Stage Size	65×65mm
Load Capacity	49N (5.0kg)
Mounting Thread	M6
Lead of Actuator	Coarse：0.25mm Fine：0.005mm
Micrometer Readable Resolution	Coarse：0.005mm Fine：0.0005mm

In stock

SKU

TAM-653LWP-M6

$742.00

Light-weight Z axis aluminum stages with integrated angle bracket.
Crossed roller guide enable smooth travel.
