65X65mm Crossed-Roller Bearing, Aluminum, Z-Axis Stage, (Vertical Platform/Horizontal Base) Side Hex Screw, +/-6.5mm, M6 Threads, Right-handed

TAM-653RLFP-M6

×
3d-simple-product

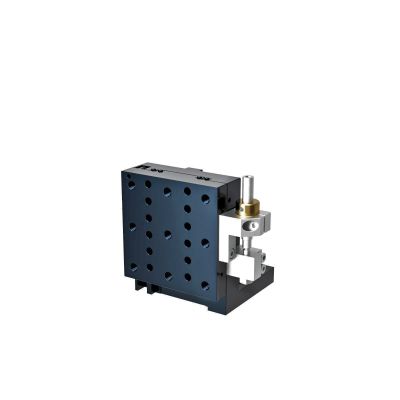

main product photo
Light-weight Z axis aluminum stages with integrated angle bracket.
Crossed roller guide enable smooth travel.

See the Left Handed version of this product
TAM-653LFP-M6




More Information
Name 65X65mm Crossed-Roller Bearing, Aluminum, Z-Axis Stage, (Vertical Platform/Horizontal Base) Side Hex Screw, +/-6.5mm, M6 Threads, Right-handed
Weight 0.4000kgs
Guide
  • The part number suffix FP indicates products with fine-pitch screws instead of standard micrometers.
  • Fine Pitch screws have a screw pitch of 0.25mm and require a hex wrench or the optional hex wrench with knob (KCL) for adjustment.(WEB Reference Catalog Code/W8008-3)
Attention -
Image Label Aluminum Crossed Roller X Stage Size Metric Threads Right Hand with Fine Pitch Screw
Stage Size 65×65mm
Load Capacity 49N (5.0kg)
Mounting Thread M6
Lead of Actuator 0.25mm
Micrometer Readable Resolution -
In stock
SKU
TAM-653RLFP-M6
$500.00

Delivery in : 2-3 weeks

custom product
Customize product
Add to Wish List
Light-weight Z axis aluminum stages with integrated angle bracket.
Crossed roller guide enable smooth travel.
