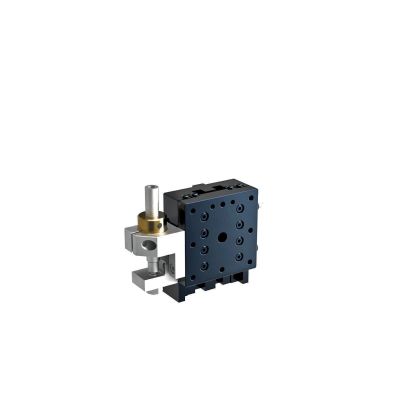

40X40mm Crossed-Roller Bearing, Aluminum, Z-Axis Stage, (Vertical Platform/Horizontal Base) Side Hex Screw, +/-6.5mm, 6-32 Threads

TAM-403LFPUU

Light-weight Z axis aluminum stages with integrated angle bracket.
Crossed roller guide enable smooth travel.

See the Right Handed version of this product

More Information
Name	40X40mm Crossed-Roller Bearing, Aluminum, Z-Axis Stage, (Vertical Platform/Horizontal Base) Side Hex Screw, +/-6.5mm, 6-32 Threads
Weight	0.1500kgs
Guide	The part number suffix FP indicates products with fine-pitch screws instead of standard micrometers. Fine Pitch screws have a screw pitch of 0.25mm and require a hex wrench or the optional hex wrench with knob (KCL) for adjustment.(WEB Reference Catalog Code/W8008-3)
Attention	-
Image Label	Aluminum Crossed Roller X Stage Size Inch Threads with Fine Pitch Screw
Stage Size	40×40mm
Load Capacity	49N (5.0kg)
Mounting Thread	6-32UNC
Lead of Actuator	0.25mm
Micrometer Readable Resolution	-

In stock

SKU

TAM-403LFPUU

$391.00

Light-weight Z axis aluminum stages with integrated angle bracket.
Crossed roller guide enable smooth travel.
