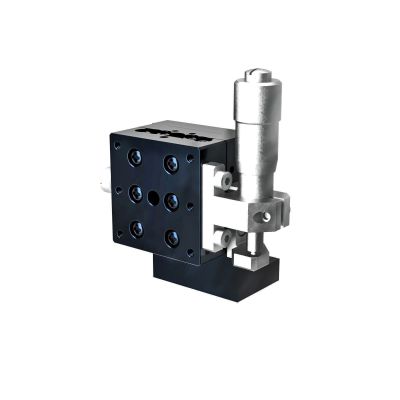

25X25mm Ball Bearing, Aluminum, Z-Axis Stage, (Vertical Platform/Horizontal Base) Center Micrometer, +/-3mm, M2 Threads, Right-handed

TADC-253RL

Aluminum translation stage with high stiffness bearing ways. Cost effective and light weight.

See the Left Handed version of this product

More Information
Name	25X25mm Ball Bearing, Aluminum, Z-Axis Stage, (Vertical Platform/Horizontal Base) Center Micrometer, +/-3mm, M2 Threads, Right-handed
Weight	0.0700kgs
Guide	Vertical mounting type stages without a L angle bracket are also available. .(WEB Reference Catalog Code/W7514)
Attention	Micrometer brackets may extend above the top surface of some stages. Check drawings for more information. Note that some samples might not be able to be fixed on the stage depending on their shapes, or required travel might not be ensured.
Image Label	Aluminum Linear Z Vertical Stage 25mm Extended Contact Bearing Ways Right Hand and Lockable with Metric Holes
Stage Size	25×25mm
Travel	±3mm
Load Capacity	14.7N (1.5kg)
Mounting Thread	M2
Lead of Actuator	0.5mm
Micrometer Readable Resolution	0.01mm
Guide Method	Extended Contact Ball Bearing Guide
Primary Material	Aluminum
Finish	Black anodized
Travel Accuracy / Straightness	3μm
Max. Moment Capacity / Pitch	1.47N・m
Max. Moment Capacity / Roll	1.47N・m
Moment Stiffness / Pitch	16.0″/N・cm
Running Parallelism	20μm

In stock

SKU

TADC-253RL

$227.00

Aluminum translation stage with high stiffness bearing ways. Cost effective and light weight.
