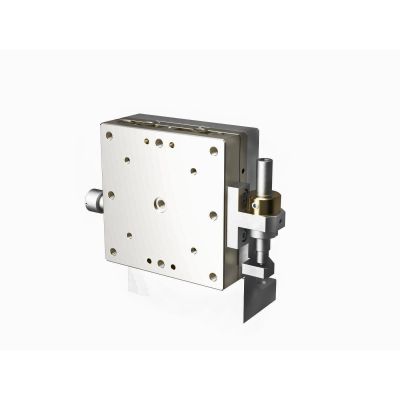

60X60mm EXC Bearing, Stainless Steel, Z-Axis Stage, (Vertical Platform/Horizontal Base) Side Hex Screw, +/-6.5mm, M4 Threads

TSDH-603LFP

High precision stainless steel translation stages with “Extended Contact” bearing ways. High stiffness. Not intended for vacuum applications.

More Information
Name	60X60mm EXC Bearing, Stainless Steel, Z-Axis Stage, (Vertical Platform/Horizontal Base) Side Hex Screw, +/-6.5mm, M4 Threads
Weight	0.6500kgs
Guide	Also available with a super black chrome surface finish. Please contact sales for more information.
Attention	Micrometer brackets may extend above the top surface of some stages. Check drawings for more information. Note that some samples might not be able to be fixed on the stage depending on their shapes, or required travel might not be ensured.
Image Label	Stainless Steel Z Stage 60x60mm Metric Threads Side Drive Vertical Platform with Fine Pitch Screw
Stage Size	60×60mm
Travel	±6.5mm
Load Capacity	49N (5.0kg)
Mounting Thread	M4
Lead of Actuator	0.25mm
Micrometer Readable Resolution	-
Travel Accuracy / Straightness	1μm
Travel Accuracy / Pitch	25″
Travel Accuracy / Yaw	15″
Max. Moment Capacity / Pitch	1.0N・m
Max. Moment Capacity / Roll	1.0N・m
Max. Moment Capacity / Yaw	1.0N・m
Moment Stiffness / Pitch	0.6″/N･cm
Moment Stiffness / Roll	0.6″/N･cm
Moment Stiffness / Yaw	0.4″/N・cm
Running Parallelism	20μm
Squareness	30μm

In stock

SKU

TSDH-603LFP

$520.00

High precision stainless steel translation stages with “Extended Contact” bearing ways. High stiffness. Not intended for vacuum applications.
