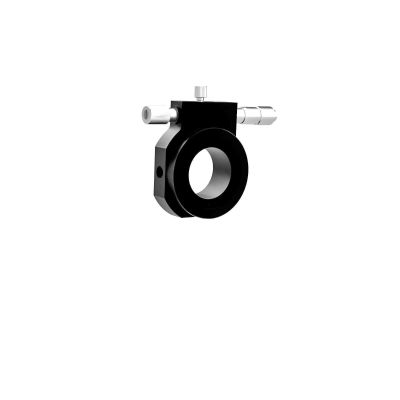

Precision Polarizer Holder for 30mm Diameter Optic

SPH-30-ARS-N

Used to adjust the direction of polarization of waveplates and polarizer optics. The mount has 360 degrees of smooth rotation.

More Information
Name	Precision Polarizer Holder for 30mm Diameter Optic
Weight	0.2700kgs
Guide	Holders for optics sizes not listed in the catalog can be made to order. Adapters for polarizing prisms are available for both the PH and SPH holders. WEB Reference Catalog Code/W4028 Post length can be changed by specifying the post length when you place an order. We may charge the difference in price depending on the length. Contact our Sales Division for more information.
Attention	M6 screws should not go deeper than 5 mm into the mounts. Longer screws will prevent the mount from rotating.
Image Label	Precision Polarizer Holder for 30mm Diameter Optic
Diameter	φ30mm
Mounting Thread	M6
Compatible Optics Diameter	φ30mm
Compatible Optics Thickness	2 - 10mm
Clear Aperture	φ27mm
Fine Adjustment Range	±5°
Vernier MIN Reading	5′
Micro Indicator Conversion	about 0.014°/DIV

In stock

SKU

SPH-30-ARS-N

£272.86

Used to adjust the direction of polarization of waveplates and polarizer optics. The mount has 360 degrees of smooth rotation.
