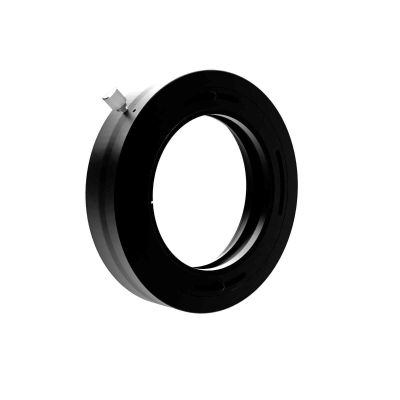

Polarizer Holder Inch for 100mm Optic

PH-100-ARS-UU

Used to adjust the direction of polarization of waveplates and polarizer optics. The mount has 360 degrees of smooth rotation.

More Information
Name	Polarizer Holder Inch for 100mm Optic
Weight	0.6600kgs
Guide	Holders for optics sizes not listed in the catalog can be made to order. Adapters for polarizing prisms are available for both the PH and SPH holders. WEB Reference Catalog Code/W4028 Post length can be changed by specifying the post length when you place an order. We may charge the difference in price depending on the length. Contact our Sales Division for more information.
Attention	M6 screws should not go deeper than 5 mm into the mounts. Longer screws will prevent the mount from rotating.
Image Label	Polarizer Holder Inch for 100mm Optic
Diameter	100mm
Mounting Thread	8-32UNC
Compatible Optics Diameter	φ100mm
Compatible Optics Thickness	2 - 10mm
Clear Aperture φA	φ95mm
Scale MIN Reading	1°

In stock

SKU

PH-100-ARS-UU

£379.56

Used to adjust the direction of polarization of waveplates and polarizer optics. The mount has 360 degrees of smooth rotation.
