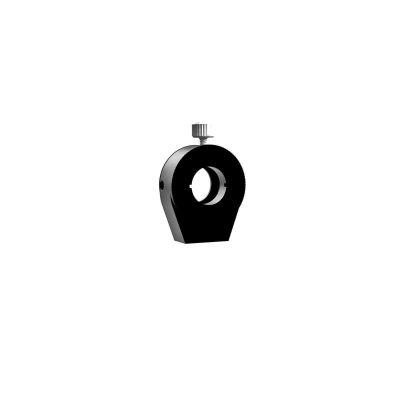

Polarizer Holder for 25.4mm Optic

MPHN-25.4R-N

Used to adjust the direction of polarization of waveplates and polarizer optics. The mount has 360 degrees of smooth rotation.

More Information
Name	Polarizer Holder for 25.4mm Optic
Weight	0.0830kgs
Guide	Holders for optics sizes not listed in the catalog can be made to order. Adapters for polarizing prisms are available for both the PH and SPH holders. WEB Reference Catalog Code/W4028 Post length can be changed by specifying the post length when you place an order. We may charge the difference in price depending on the length. Contact our Sales Division for more information.
Attention	M6 screws should not go deeper than 5 mm into the mounts. Longer screws will prevent the mount from rotating.
Image Label	Polarizer Holder for 25.4mm Optic
Diameter	25.4mm
Mounting Thread	M4
Compatible Optics Diameter φD	φ25.4mm
Compatible Optics Thickness	2 - 8.5mm
Scale MIN Reading	2°
Clear Aperture φE	φ22mm
Optical Axis Height B	25mm
A (Max)	51mm
φC	φ40mm

In stock

SKU

MPHN-25.4R-N

£133.38

Used to adjust the direction of polarization of waveplates and polarizer optics. The mount has 360 degrees of smooth rotation.
