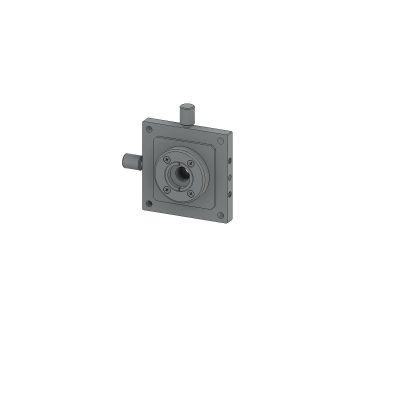

Pinhole Holder without Post

AH-1-UU

Two-axis holder for pinholes. Usable in basic diffraction experiment.

Compact outer dimension enable installation in apparatus with limited inner space.

More Information
Name	Pinhole Holder without Post
Weight	0.0700kgs
Guide	Criss-cross type lens holder (TAT-16 or TAT-30) and its objective lens adaptor (TAT-180A) for objetive lens center adjustment is available. (WEB Reference Catalog Code/W4038)
Attention	For Focusing lens with a NA over 0.4, there may lack of pinhole frame.
Image Label	Pinhole Holder without Post
Adjustment Range	±1.25mm
Resolution	0.5mm/rotation

In stock

SKU

AH-1-UU

£199.43

Two-axis holder for pinholes. Usable in basic diffraction experiment.
