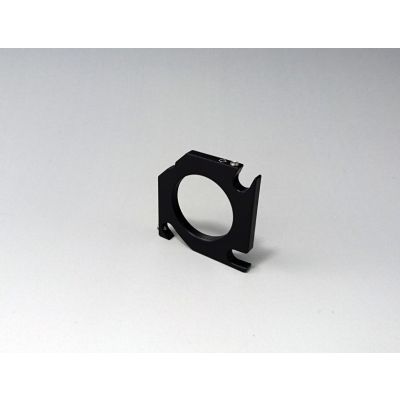

Cage M26.3×0.635 Plate

C30-STHP-M26.3T8

Skip to the beginning of the images gallery

Optical components can be assembled with 30mm Cage system directly by using Cage M26.3*0.635 Plate.
Side-in type plate allows to assemble/deassemble with/from the cage system while the system constructed.
Suitable thickness plate can be selected from various lineup of the plate.
Optical components can be arranged in the cage system with narrow gaps by using the plate.

Details

More Information

More Information
Name	Cage M26.3×0.635 Plate
Weight	300.0000kgs
Guide	Please contact our Sales for methods to fix the cage system to other equipment and parts not included in the WEB catalog. For consultation of optical system using cage system please contact Sales.
Attention	If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders. Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder. When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.
Primary material	Aluminum
Guide Rod Diameter (Spaceing between rod)	φ6mm (30x30mm)
Compatiblefixing screw	M26.3 P0.635
Holder Thickness	8mm

In stock

SKU

C30-STHP-M26.3T8

£20.90
