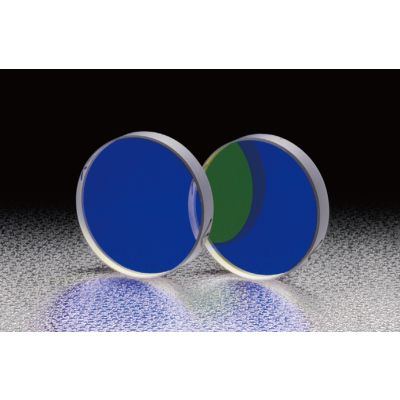

Wide Angle Dielectric Mirror 40mm Diameter 6mm Thick Wavelength 400 - 700nm
TFVM-40C06-VIS
You can use the 0-45° Wide Angle Dielectric Mirrors for an optical system for reciprocating the light between two mirrors or Michelson interferometer, if you want to use a mirror at an incident angle of 45 ° or less. When used at 45 degree and 0 degree incidence angle, one mirror can be shared to obtain high reflectivity.
◦Very high reflectivity can be obtained between 0 degree to 45 degree angle of incidence.
◦If used at a fixed angle of incidence, it can also be used as a broadband mirror. For example, if TFVM-800 is used in a 45 degree incident, reflectance of 99% or more can be obtained in the range of 730nm to 900nm.
◦Since there is no absorption in the coating there will be very little change in the performance over time and the mirror is durable even with continuous laser irradiation.
◦If used at a fixed angle of incidence, it can also be used as a broadband mirror. For example, if TFVM-800 is used in a 45 degree incident, reflectance of 99% or more can be obtained in the range of 730nm to 900nm.
◦Since there is no absorption in the coating there will be very little change in the performance over time and the mirror is durable even with continuous laser irradiation.
| Name | Wide Angle Dielectric Mirror 40mm Diameter 6mm Thick Wavelength 400 - 700nm |
|---|---|
| Weight | 0.0200kgs |
| Standard Coatings Available | No |
| Guide |
|
| Remark | - |
| Attention |
|
| Design wavelength | 400 - 700nm |
| Diameter φD | 40mm |
| Reflectance | ＞99% |
| Material | BK7 |
| Coating | Dielectric multi-layer coating |
| Incident angle | 0° - 45° |
| Surface flatness | λ/10 |
| Parallelism | ＜3′ |
| Surface Quality (Scratch-Dig) | 10−5 |
| Wavelength Range | 400 - 700nm |
| Diameter φD | φ40mm |
| Thickness t | 6mm |
| Reflectance | ＞99% |
| Laser Damage Threshold<sup>*</sup> | 0.5J/cm2 |
| Rear surface | Polished |
| Availability | Please contact |
In stock
SKU
TFVM-40C06-VIS
£164.03
Customize product
You can use the 0-45° Wide Angle Dielectric Mirrors for an optical system for reciprocating the light between two mirrors or Michelson interferometer, if you want to use a mirror at an incident angle of 45 ° or less. When used at 45 degree and 0 degree incidence angle, one mirror can be shared to obtain high reflectivity.
