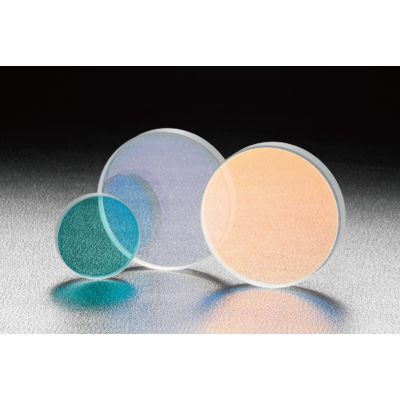

High Surface Flatness Mirror 50.8mm Diameter 248nm
HTFM-50.8C11-248
High Surface Accuracy Mirrors are realized by optimizing the conditions of the substrate material, thickness and coating. A surface accuracy of λ/10 after coating is guaranteed on these mirrors.
◦This product features a surface accuracy (after coating) higher than our standard dielectric multi-layer flat mirrors (TFM).
◦By using synthetic fused silica and increasing the substrate thickness the rigidity of the mirrors are increased.
◦Our product line includes mirrors with high-reflection for use in individual wavelengths including ultra-violet,YAG and other lasers.
◦By using synthetic fused silica and increasing the substrate thickness the rigidity of the mirrors are increased.
◦Our product line includes mirrors with high-reflection for use in individual wavelengths including ultra-violet,YAG and other lasers.
| Name | High Surface Flatness Mirror 50.8mm Diameter 248nm |
|---|---|
| Weight | 0.0500kgs |
| Standard Coatings Available | No |
| Guide |
|
| Attention |
|
| Design wavelength | 248nm |
| Diameter φD | 50.8mm |
| Reflectance | ＞99.2% |
| Material | Synthetic fused silica |
| Coating | Dielectric multi-layer coating |
| Incident angle | 45°±3° |
| Surface flatness after coating | λ/10 |
| Parallelism | ＜3′ |
| Surface Quality (Scratch-Dig) | 10−5 |
| Clear aperture | 80% of the diameter |
| Rear surface | Polished |
| Thickness t | 11mm |
| Laser Damage Threshold | 2J/cm2 |
| Laser pulse width 10ns, repetition frequency 20Hz |
In stock
SKU
HTFM-50.8C11-248
£582.19
Customize product
High Surface Accuracy Mirrors are realized by optimizing the conditions of the substrate material, thickness and coating. A surface accuracy of λ/10 after coating is guaranteed on these mirrors.
