Aluminum Mirrors (Square)

TFA-S

More about
Aluminum Mirrors (Square)
In stock
SKU
TFA-S
This is a vapor-deposited aluminum flat mirror with the substrate polished with high accuracy, designed for high reflectivity at any incident angle.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name
A x B
Material
Rear Surface
Reflectance
Delivery Price Add to cart
details
TFAN-60S10-10
60mm x 60mm Hard glass Polished Rave.＞90%
6-12 weeks
£295.31
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20

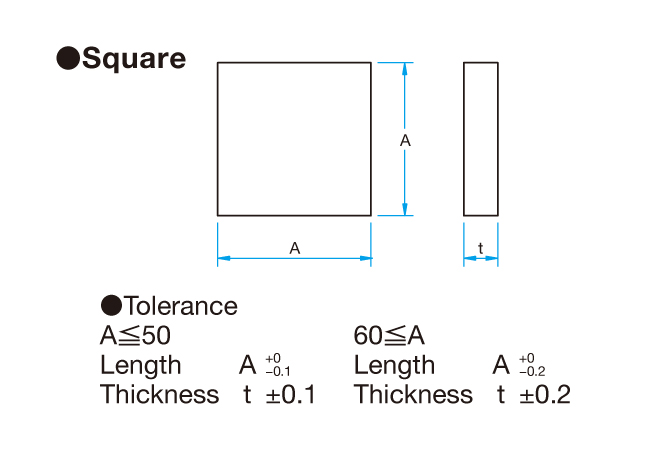

Outer dimension A □60mm
Thickness t 10mm
Surface Flatness λ/10
Rear surface Polished
details
TFAQ-30S06-20
30mm x 30mm Synthetic fused silica Ground
2 weeks
£246.09
Material Synthetic fused silica
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □30mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-15S05-4
15mm x 15mm BK7 Ground Rave.＞90%
2-3 weeks
£29.52
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □15mm
Thickness t 5mm
Surface Flatness λ/4
Rear surface Ground
details
TFA-80S12-4
80mm x 80mm Hard glass Polished Rave.＞90%
6-12 weeks
£255.93
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □80mm
Thickness t 12mm
Surface Flatness λ/4
Rear surface Polished
details
TFAN-30S05-10
30mm x 30mm BK7 Ground Rave.＞90%
2 weeks
£93.06
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □30mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Ground
details
TFAQN-15S06-20
15mm x 15mm Synthetic fused silica Ground
6-12 weeks
£78.74
Material Synthetic fused silica
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □15mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-80S12-1
80mm x 80mm Hard glass Polished Rave.＞90%
6-12 weeks
£187.03
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □80mm
Thickness t 12mm
Surface Flatness λ
Rear surface Polished
details
TFA-40S06-1
40mm x 40mm Hard glass Polished Rave.＞90%
2 weeks
£73.37
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □40mm
Thickness t 6mm
Surface Flatness λ
Rear surface Polished
details
TFA-20S05-4
20mm x 20mm BK7 Ground Rave.＞90%
2-3 weeks
£39.37
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □20mm
Thickness t 5mm
Surface Flatness λ/4
Rear surface Ground
details
TFAN-80S12-20
80mm x 80mm Hard glass Polished Rave.＞90%
6-12 weeks
£748.14
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □80mm
Thickness t 12mm
Surface Flatness λ/20
Rear surface Polished
details
TFA-40S06-20
40mm x 40mm Hard glass Polished Rave.＞90%
2 weeks
£275.63
Material Hard glass
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □40mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Polished
details
TFAQ-20S06-20
20mm x 20mm Synthetic fused silica Ground Rave.＞90%
2 weeks
£118.12
Material Synthetic fused silica
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □20mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-20S05-4
20mm x 20mm BK7 Ground Rave.＞90%
2-3 weeks
£39.37
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □20mm
Thickness t 5mm
Surface Flatness λ/4
Rear surface Ground
details
TFA-100S15-10
100mm x 100mm Hard glass Polished Rave.＞90%
6-12 weeks
£472.49
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □100mm
Thickness t 15mm
Surface Flatness λ/10
Rear surface Polished
details
TFAN-40S06-10
40mm x 40mm Hard glass Polished Rave.＞90%
2 weeks
£137.82
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □40mm
Thickness t 6mm
Surface Flatness λ/10
Rear surface Polished
details
TFAEFL-250S06-P
250mm x 250mm Float glass (Soda-Lime glass) Polished Rave.＞90%
2 weeks
£265.77
Material Float glass (Soda-Lime glass)
Coating Aluminum+Dielectric multilayer coating
Clear aperture 90% of the diameter
Rear surface Polished
Surface Quality (Scratch-Dig) 60-40
Wavelength Range 400 - 700nm
Reflectance Rave.＞90%
Outer dimension A □250mm
Thickness t 6mm
Surface Flatness 4 - 6λ (Within φ25.4)
details
TFAQN-20S06-20
20mm x 20mm Synthetic fused silica Ground Rave.＞90%
6-12 weeks
£118.12
Material Synthetic fused silica
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □20mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-100S15-10
100mm x 100mm Hard glass Polished Rave.＞90%
2 weeks
£472.49
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □100mm
Thickness t 15mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-50S08-4
50mm x 50mm Hard glass Polished Rave.＞90%
2-3 weeks
£152.13
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □50mm
Thickness t 8mm
Surface Flatness λ/4
Rear surface Polished
details
TFA-10S05-10
10mm x 10mm BK7 Ground Rave.＞90%
2 weeks
£24.15
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □10mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Ground
details
TFA-25S05-10
25mm x 25mm BK7 Ground Rave.＞90%
2 weeks
£68.91
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □25mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Ground
details
TFA-130S18-10
130mm x 130mm Hard glass Polished Rave.＞90%
2 weeks
£787.51
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □130mm
Thickness t 18mm
Surface Flatness λ/10
Rear surface Polished
details
TFAN-50S08-1
50mm x 50mm Hard glass Polished Rave.＞90%
2 weeks
£93.06
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □50mm
Thickness t 8mm
Surface Flatness λ
Rear surface Polished
details
TFAN-10S03-10
10mm x 10mm BK7 Ground Rave.＞90%
2 weeks
£24.15
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □10mm
Thickness t 3mm
Surface Flatness λ/10
Rear surface Ground
details
TFAN-25S05-1
25mm x 25mm BK7 Ground Rave.＞90%
2-3 weeks
£39.37
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □25mm
Thickness t 5mm
Surface Flatness λ
Rear surface Ground
details
TFAN-130S18-10
130mm x 130mm Hard glass Polished Rave.＞90%
6-12 weeks
£787.51
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □130mm
Thickness t 18mm
Surface Flatness λ/10
Rear surface Polished
details
TFAN-50S08-20
50mm x 50mm Hard glass Polished Rave.＞90%
2 weeks
£364.21
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □50mm
Thickness t 8mm
Surface Flatness λ/20
Rear surface Polished
details
TFAQN-10S06-20
10mm x 10mm Synthetic fused silica Ground
6-12 weeks
£63.53
Material Synthetic fused silica
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □10mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-25S05-20
25mm x 25mm BK7 Ground Rave.＞90%
6-12 weeks
£137.82
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □25mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Ground
details
TFA-150S20-10
150mm x 150mm Hard glass Polished Rave.＞90%
6-12 weeks
£1,279.69
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □150mm
Thickness t 20mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-15S03-4
15mm x 15mm BK7 Ground Rave.＞90%
2 weeks
£29.52
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □15mm
Thickness t 3mm
Surface Flatness λ/4
Rear surface Ground
details
TFA-60S10-4
60mm x 60mm Hard glass Polished Rave.＞90%
2 weeks
£177.19
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □60mm
Thickness t 10mm
Surface Flatness λ/4
Rear surface Polished
details
TFAN-150S20-10
150mm x 150mm Hard glass Polished Rave.＞90%
6-12 weeks
£1,279.69
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □150mm
Thickness t 20mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-15S05-10
15mm x 15mm BK7 Ground Rave.＞90%
6-12 weeks
£34.00
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □15mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Ground
details
TFAN-60S10-1
60mm x 60mm Hard glass Polished Rave.＞90%
2 weeks
£118.12
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □60mm
Thickness t 10mm
Surface Flatness λ
Rear surface Polished
details
TFA-30S05-10
30mm x 30mm BK7 Ground Rave.＞90%
2 weeks
£93.06
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □30mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Ground
details
TFAN-15S03-4
15mm x 15mm BK7 Ground Rave.＞90%
2 weeks
£29.52
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □15mm
Thickness t 3mm
Surface Flatness λ/4
Rear surface Ground
details
TFAN-60S10-20
60mm x 60mm Hard glass Polished Rave.＞90%
6-12 weeks
£590.62
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □60mm
Thickness t 10mm
Surface Flatness λ/20
Rear surface Polished
details
TFAN-30S05-1
30mm x 30mm BK7 Ground Rave.＞90%
2-3 weeks
£49.21
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □30mm
Thickness t 5mm
Surface Flatness λ
Rear surface Ground
details
TFAN-15S05-10
15mm x 15mm BK7 Ground Rave.＞90%
2 weeks
£34.00
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □15mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Ground
details
TFA-80S12-10
80mm x 80mm Hard glass Polished Rave.＞90%
2 weeks
£374.07
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □80mm
Thickness t 12mm
Surface Flatness λ/10
Rear surface Polished
details
TFAN-30S05-20
30mm x 30mm BK7 Ground Rave.＞90%
2 weeks
£187.03
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □30mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Ground
details
TFA-20S03-4
20mm x 20mm BK7 Ground Rave.＞90%
2-3 weeks
£39.37
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □20mm
Thickness t 3mm
Surface Flatness λ/4
Rear surface Ground
details
TFAN-80S12-4
80mm x 80mm Hard glass Polished Rave.＞90%
6-12 weeks
£255.93
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □80mm
Thickness t 12mm
Surface Flatness λ/4
Rear surface Polished
details
TFA-40S06-4
40mm x 40mm Hard glass Polished Rave.＞90%
2-3 weeks
£118.12
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □40mm
Thickness t 6mm
Surface Flatness λ/4
Rear surface Polished
details
TFA-20S05-10
20mm x 20mm BK7 Ground Rave.＞90%
2 weeks
£49.21
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □20mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Ground
details
TFA-100S15-1
100mm x 100mm Hard glass Polished Rave.＞90%
2 weeks
£226.40
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □100mm
Thickness t 15mm
Surface Flatness λ
Rear surface Polished
details
TFAN-40S06-1
40mm x 40mm Hard glass Polished Rave.＞90%
2-3 weeks
£73.37
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □40mm
Thickness t 6mm
Surface Flatness λ
Rear surface Polished
details
TFAN-20S03-4
20mm x 20mm BK7 Ground Rave.＞90%
2-3 weeks
£39.37
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □20mm
Thickness t 3mm
Surface Flatness λ/4
Rear surface Ground
details
TFAN-20S05-10
20mm x 20mm BK7 Ground Rave.＞90%
2 weeks
£49.21
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □20mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Ground
details
TFAN-100S15-1
100mm x 100mm Hard glass Polished Rave.＞90%
6-12 weeks
£226.40
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □100mm
Thickness t 15mm
Surface Flatness λ
Rear surface Polished
details
TFAN-40S06-20
40mm x 40mm Hard glass Polished Rave.＞90%
6-12 weeks
£275.63
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □40mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Polished
details
TFAEFL-300S06-P
300mm x 300mm Float glass (Soda-Lime glass) Polished Rave.＞90%
6-12 weeks
£345.43
Material Float glass (Soda-Lime glass)
Coating Aluminum+Dielectric multilayer coating
Clear aperture 90% of the diameter
Rear surface Polished
Surface Quality (Scratch-Dig) 60-40
Wavelength Range 400 - 700nm
Reflectance Rave.＞90%
Outer dimension A □300mm
Thickness t 6mm
Surface Flatness 4 - 6λ (Within φ25.4)
details
TFA-25S05-1
25mm x 25mm BK7 Ground Rave.＞90%
2-3 weeks
£39.37
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □25mm
Thickness t 5mm
Surface Flatness λ
Rear surface Ground
details
TFA-130S18-1
130mm x 130mm Hard glass Polished Rave.＞90%
6-12 weeks
£324.83
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □130mm
Thickness t 18mm
Surface Flatness λ
Rear surface Polished
details
TFA-50S08-10
50mm x 50mm Hard glass Polished Rave.＞90%
2 weeks
£181.64
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □50mm
Thickness t 8mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-10S05-20
10mm x 10mm BK7 Ground Rave.＞90%
2 weeks
£49.21
Material BK7
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □10mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Ground
details
TFA-25S05-20
25mm x 25mm BK7 Ground Rave.＞90%
2 weeks
£137.82
Material BK7
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □25mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-130S18-1
130mm x 130mm Hard glass Polished Rave.＞90%
6-12 weeks
£324.83
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □130mm
Thickness t 18mm
Surface Flatness λ
Rear surface Polished
details
TFAN-50S08-4
50mm x 50mm Hard glass Polished Rave.＞90%
6-12 weeks
£152.13
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □50mm
Thickness t 8mm
Surface Flatness λ/4
Rear surface Polished
details
TFAN-10S05-10
10mm x 10mm BK7 Ground Rave.＞90%
6-12 weeks
£24.15
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □10mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Ground
details
TFAN-25S05-4
25mm x 25mm BK7 Ground Rave.＞90%
2-3 weeks
£59.04
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □25mm
Thickness t 5mm
Surface Flatness λ/4
Rear surface Ground
details
TFA-150S20-1
150mm x 150mm Hard glass Polished Rave.＞90%
6-12 weeks
£482.35
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □150mm
Thickness t 20mm
Surface Flatness λ
Rear surface Polished
details
TFA-12.7S03-4
12.7mm x 12.7mm BK7 Polished Rave.＞90%
6-12 weeks
£29.52
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □12.7mm
Thickness t 3mm
Surface Flatness λ/4
Rear surface Ground
details
TFAQN-25S06-20
25mm x 25mm Synthetic fused silica Ground
6-12 weeks
£157.49
Material Synthetic fused silica
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □25mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-150S20-1
150mm x 150mm Hard glass Polished Rave.＞90%
6-12 weeks
£482.35
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □150mm
Thickness t 20mm
Surface Flatness λ
Rear surface Polished
details
TFA-15S03-10
15mm x 15mm BK7 Ground Rave.＞90%
2 weeks
£34.00
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □15mm
Thickness t 3mm
Surface Flatness λ/10
Rear surface Ground
details
TFA-60S10-10
60mm x 60mm Hard glass Polished Rave.＞90%
6-12 weeks
£295.31
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □60mm
Thickness t 10mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-30S05-1
30mm x 30mm BK7 Ground Rave.＞90%
2 weeks
£49.21
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □30mm
Thickness t 5mm
Surface Flatness λ
Rear surface Ground
details
TFA-15S05-20
15mm x 15mm BK7 Ground Rave.＞90%
6-12 weeks
£68.91
Material BK7
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □15mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-60S10-4
60mm x 60mm Hard glass Polished Rave.＞90%
6-12 weeks
£177.19
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □60mm
Thickness t 10mm
Surface Flatness λ/4
Rear surface Polished
details
TFA-30S05-20
30mm x 30mm BK7 Ground Rave.＞90%
6-12 weeks
£187.03
Material BK7
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □30mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-15S03-10
15mm x 15mm BK7 Ground Rave.＞90%
6-12 weeks
£34.00
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □15mm
Thickness t 3mm
Surface Flatness λ/10
Rear surface Ground
details
TFA-80S12-1
80mm x 80mm Hard glass Polished Rave.＞90%
6-12 weeks
£187.03
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □80mm
Thickness t 12mm
Surface Flatness λ
Rear surface Polished
details
TFAN-30S05-4
30mm x 30mm BK7 Ground Rave.＞90%
2-3 weeks
£73.37
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □30mm
Thickness t 5mm
Surface Flatness λ/4
Rear surface Ground
details
TFAN-15S05-20
15mm x 15mm BK7 Ground Rave.＞90%
6-12 weeks
£68.91
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □15mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Ground
details
TFA-80S12-20
80mm x 80mm Hard glass Polished Rave.＞90%
2 weeks
£748.14
Material Hard glass
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □80mm
Thickness t 12mm
Surface Flatness λ/20
Rear surface Polished
details
TFAQN-30S06-20
30mm x 30mm Synthetic fused silica Ground
6-12 weeks
£246.09
Material Synthetic fused silica
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □30mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Ground
details
TFA-20S03-10
20mm x 20mm BK7 Ground Rave.＞90%
2 weeks
£49.21
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □20mm
Thickness t 3mm
Surface Flatness λ/10
Rear surface Ground
details
TFAN-80S12-10
80mm x 80mm Hard glass Polished Rave.＞90%
6-12 weeks
£374.07
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □80mm
Thickness t 12mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-40S06-10
40mm x 40mm Hard glass Polished Rave.＞90%
2 weeks
£137.82
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □40mm
Thickness t 6mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-20S05-20
20mm x 20mm BK7 Ground Rave.＞90%
2 weeks
£98.42
Material BK7
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □20mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-20S03-10
20mm x 20mm BK7 Ground Rave.＞90%
2 weeks
£49.21
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □20mm
Thickness t 3mm
Surface Flatness λ/10
Rear surface Ground
details
TFA-100S15-4
100mm x 100mm Hard glass Polished Rave.＞90%
2 weeks
£315.00
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □100mm
Thickness t 15mm
Surface Flatness λ/4
Rear surface Polished
details
TFAN-40S06-4
40mm x 40mm Hard glass Polished Rave.＞90%
2-3 weeks
£118.12
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □40mm
Thickness t 6mm
Surface Flatness λ/4
Rear surface Polished
details
TFAEFL-200S06-P
200mm x 200mm Float glass (Soda-Lime glass) Polished Rave.＞90%
6-12 weeks
£206.72
Material Float glass (Soda-Lime glass)
Coating Aluminum+Dielectric multilayer coating
Clear aperture 90% of the diameter
Rear surface Polished
Surface Quality (Scratch-Dig) 60-40
Wavelength Range 400 - 700nm
Reflectance Rave.＞90%
Outer dimension A □200mm
Thickness t 6mm
Surface Flatness 4 - 6λ (Within φ25.4)
details
TFAN-20S05-20
20mm x 20mm BK7 Ground Rave.＞90%
6-12 weeks
£98.42
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □20mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-100S15-4
100mm x 100mm Hard glass Polished Rave.＞90%
2 weeks
£315.00
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □100mm
Thickness t 15mm
Surface Flatness λ/4
Rear surface Polished
details
TFA-50S08-1
50mm x 50mm Hard glass Polished Rave.＞90%
2-3 weeks
£93.06
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □50mm
Thickness t 8mm
Surface Flatness λ
Rear surface Polished
details
TFA-10S03-10
10mm x 10mm BK7 Ground Rave.＞90%
2 weeks
£24.15
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □10mm
Thickness t 3mm
Surface Flatness λ/10
Rear surface Ground
details
TFA-25S05-4
25mm x 25mm BK7 Ground Rave.＞90%
2-3 weeks
£59.04
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □25mm
Thickness t 5mm
Surface Flatness λ/4
Rear surface Ground
details
TFA-130S18-4
130mm x 130mm Hard glass Polished Rave.＞90%
6-12 weeks
£482.35
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □130mm
Thickness t 18mm
Surface Flatness λ/4
Rear surface Polished
details
TFA-50S08-20
50mm x 50mm Hard glass Polished Rave.＞90%
6-12 weeks
£364.21
Material Hard glass
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □50mm
Thickness t 8mm
Surface Flatness λ/20
Rear surface Polished
details
TFAQ-10S06-20
10mm x 10mm Synthetic fused silica Ground
6-12 weeks
£63.53
Material Synthetic fused silica
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □10mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Ground
details
TFAQ-25S06-20
25mm x 25mm Synthetic fused silica Ground
6-12 weeks
£157.49
Material Synthetic fused silica
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □25mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-130S18-4
130mm x 130mm Hard glass Polished Rave.＞90%
6-12 weeks
£482.35
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □130mm
Thickness t 18mm
Surface Flatness λ/4
Rear surface Polished
details
TFAN-50S08-10
50mm x 50mm Hard glass Polished Rave.＞90%
6-12 weeks
£181.64
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □50mm
Thickness t 8mm
Surface Flatness λ/10
Rear surface Polished
details
TFAN-10S05-20
10mm x 10mm BK7 Ground Rave.＞90%
2 weeks
£49.21
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □10mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-25S05-10
25mm x 25mm BK7 Ground Rave.＞90%
2 weeks
£68.91
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □25mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Ground
details
TFA-150S20-4
150mm x 150mm Hard glass Polished Rave.＞90%
6-12 weeks
£836.72
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □150mm
Thickness t 20mm
Surface Flatness λ/4
Rear surface Polished
details
TFA-12.7S03-10
12.7mm x 12.7mm BK7 Polished Rave.＞90%
6-12 weeks
£34.00
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □12.7mm
Thickness t 3mm
Surface Flatness λ/10
Rear surface Ground
details
TFA-60S10-1
60mm x 60mm Hard glass Polished Rave.＞90%
2 weeks
£118.12
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □60mm
Thickness t 10mm
Surface Flatness λ
Rear surface Polished
details
TFAN-150S20-4
150mm x 150mm Hard glass Polished Rave.＞90%
6-12 weeks
£836.72
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □150mm
Thickness t 20mm
Surface Flatness λ/4
Rear surface Polished
details
TFA-15S05-4
15mm x 15mm BK7 Ground Rave.＞90%
2 weeks
£29.52
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □15mm
Thickness t 5mm
Surface Flatness λ/4
Rear surface Ground
details
TFA-60S10-20
60mm x 60mm Hard glass Polished Rave.＞90%
6-12 weeks
£590.62
Material Hard glass
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □60mm
Thickness t 10mm
Surface Flatness λ/20
Rear surface Polished
details
TFA-30S05-4
30mm x 30mm BK7 Ground Rave.＞90%
2-3 weeks
£73.37
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □30mm
Thickness t 5mm
Surface Flatness λ/4
Rear surface Ground
details
TFAQ-15S06-20
15mm x 15mm Synthetic fused silica Ground
6-12 weeks
£78.74
Material Synthetic fused silica
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Outer dimension A □15mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Ground

You must be logged in to ask questions

◦With four types to choose from; (TFAN/TFAQN) which is coated with aluminum only, (TFA/TFAQ) which is coated with a protective coating against accidental hard scratches, (TFAE) which is coated aluminum and a protective coating to increase the reflectance of ultraviolet and lastly, (OPBA/OPSQA) which provides Aluminum with protective coat on the optical parallel substrate.
◦For ultraviolet, visible and near-infrared light applications.
◦For low thermal expansion mirrors, we have (TFAQ/TFAQN) which is made of Synthetic fused silica that provides high rigidity and high precision surface quality.
