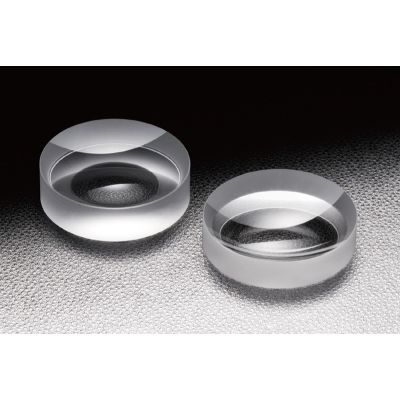

Biconcave Lens 30mm Diameter −99.7mm Focal Length 633 - 1064nm
SLB-30B-100NIR1
These biconcave lenses are used when a very high negative power is required. They can be used in a multi-element system or alone to produce a diverging cone or virtual image. Sharpe edges, which are common in negative lenses, are removed by beveling to reduce the likelihood of chipping.
◦There are two types of biconvex lenses available; BK7 for use in visible range to infrared wavelength range.
◦Our lenses are listed by outside diameter and focal length to assist your selection according to required specifications.
◦Our lenses are listed by outside diameter and focal length to assist your selection according to required specifications.
| Name | Biconcave Lens 30mm Diameter −99.7mm Focal Length 633 - 1064nm |
|---|---|
| Weight | 0.0500kgs |
| Standard Coatings Available | No |
| Guide |
|
| Remark | - |
| Attention |
|
| Diameter φD | 30mm |
| Focal length | −99.7mm |
| Material | BK7 |
| Design Wavelength | 546.1nm |
| Refractive index n<sub>e</sub> | 1.519 |
| Coating | Broadband Multilayer antireflection coating (633 - 1064nm) |
| Laser Damage Threshold | 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz) |
| Clear aperture | 85% of the diameter |
| Surface Quality (Scratch-Dig) | 20-10 |
| Wavelength range of Antireflection Coating | 633 - 1064nm |
| Diameter φD | φ30mm |
| Focal length f | −99.7mm |
| Edge thickness te | 4.2mm |
| Center thickness tc | 2mm |
| Back focal length fb | −100.3mm |
| Radius of curvature r | 103.8mm |
| Centration | ＜1′ |
In stock
SKU
SLB-30B-100NIR1
£81.19
Customize product
These biconcave lenses are used when a very high negative power is required. They can be used in a multi-element system or alone to produce a diverging cone or virtual image. Sharpe edges, which are common in negative lenses, are removed by beveling to reduce the likelihood of chipping.
