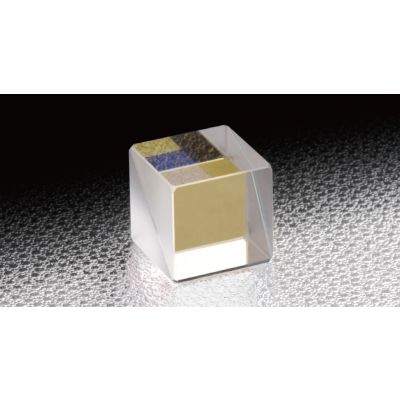

Polarizing Beamsplitter Cube 10mm 1064nm

PBS-10-10640

Skip to the beginning of the images gallery

Polarizing beamsplitters consist of two right angle prisms. One of them is coated with dielectric multi-layer polarizing coating on the hypotenuse face. Polarizing beamsplitters split a monochromatic beam entering at zero degree into p-polarization as transmitted and s-polarization as reflected.

Details

◦Four surfaces of the cube are coated with narrowband multi-layer anti-reflection coatings.
◦The losses of input beam of these products are minimized because of no absorption of the dielectric coatings.
◦For cube beamsplitters, unlike plate beamsplitters, beam deviations of transmitted beams and ghosts rarely occur.

More Information

More Information
Name	Polarizing Beamsplitter Cube 10mm 1064nm
Weight	0.0050kgs
Standard Coatings Available	No
Guide	Please contact our Sales Division for customized products. (Customized on size, wavelength etc.) Plate-type Polarizing Beamsplitters (PBS-C) are also available upon your request. WEB Reference Catalog Code/W3026 There is also a high extinction ratio Glan-Thompson prism (GTPB/ GTPC). WEB Reference Catalog Code/W3450
Remark	-
Attention	Input beam from the prism on the side indicated by ○. When the light is incident from the side of the prism without mark, there is a possibility that the characteristics of the transmittance and extinction ratio will change. The transmittance curves are based on actual measurements and might vary between manufacturing lots. The surface flatness is the reflected wavefront distortion of the surface before coating. Be sure to wear laser safety goggles when checking optical path and adjusting optical axis.
Design wavelength	1064nm
Image Label	Polarizing Beamsplitter Cube 10mm 1064nm
Length	10mm
Material	BK7
Surface flatness of substrate	λ/4
Angular deviation of transmitted beam	＜10′
Coating	Hypotenuse surface ; Dielectric multilayer coating Four surfaces ; Multilayer antireflection coating
Incident angle	0°
Transmittance of P polarized light	＞97%( PBS-4050 ; ＞90%)
Extinction ratio of transmission	Ts：Tp＝1：1000
Laser Damage Threshold	0.3J/cm² (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Surface Quality (Scratch-Dig)	20-10
Wavelength range	1064nm
A＝B＝C	10mm
Reflectance of S polarized light	＞97%

In stock

SKU

PBS-10-10640

£267.04
