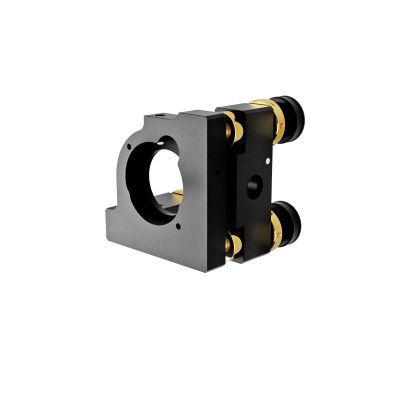

NOMI LOCK Model Production Kinematic Mirror Holder for 25mm Mirror
MHG-MP25-NL
×
NOMI LOCKTM is the new locking mechanism from OptoSigma. It can adjust the torque of the adjustment screws and lock down the screws with negligible shift. It is best suited for use in interferometers or laser processing devices where beam displacement can cause issues. NOMI LOCKTM is a registered trademark of SIGMA KOKI CO., Ltd.
◦Kinematic mirror holders have excellent rigidity and stability. These qualities make them perfect for use in interferometers and laser resonators.
◦There are two types of mirror holders, a high stability model (MHG-HS) and a production model (MHG-MP).
◦The MHG-HS high stability model is fitted with large adjustment knobs. These knobs allow for movement in the vertical direction as well making it a 3 axis mount.
◦NOMI LOCKTM will have a single fringe displaced in the optical axis when used in interferometers. (There are individual differences in the operation of the lock.)
◦Three point fixation of the mirrors reduce the stress caused by mounting greatly.
◦These holders have a large aperture for reflective or transmitted light. The retaining rings to not reduce the clear aperture.
◦There are two types of mirror holders, a high stability model (MHG-HS) and a production model (MHG-MP).
◦The MHG-HS high stability model is fitted with large adjustment knobs. These knobs allow for movement in the vertical direction as well making it a 3 axis mount.
◦NOMI LOCKTM will have a single fringe displaced in the optical axis when used in interferometers. (There are individual differences in the operation of the lock.)
◦Three point fixation of the mirrors reduce the stress caused by mounting greatly.
◦These holders have a large aperture for reflective or transmitted light. The retaining rings to not reduce the clear aperture.
| Name | NOMI LOCK Model Production Kinematic Mirror Holder for 25mm Mirror |
|---|---|
| Weight | 0.1200kgs |
| Guide |
|
| Attention |
|
| Image Label | NOMI LOCK Model Production Kinematic Mirror Holder for 25mm Mirror |
| Diameter | 25mm |
| Number of Control Axes | 2 Axes |
| Mounting Thread | M6 |
| Compatible Optics Diameter | φ25, φ25.4mm |
| Compatible Optics Thickness | 3 - 5mm |
| Adjustment Range /Tilt | ±3° |
| Adjustment Range /Rotation | ±3° |
| Resolution /Tilt | about 0.39°/rotation |
| Resolution /Rotation | about 0.39°/rotation |
In stock
SKU
MHG-MP25-NL
$88.20
Customize product
NOMI LOCKTM is the new locking mechanism from OptoSigma. It can adjust the torque of the adjustment screws and lock down the screws with negligible shift. It is best suited for use in interferometers or laser processing devices where beam displacement can cause issues. NOMI LOCKTM is a registered trademark of SIGMA KOKI CO., Ltd.
