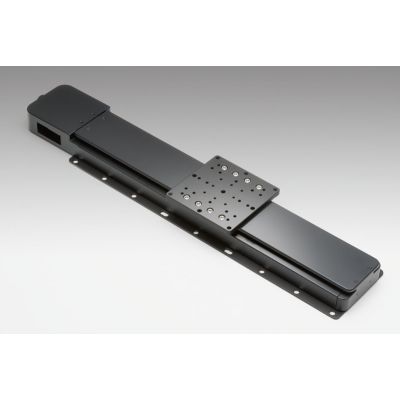

Motorized Single Axis Stage Enclosed Ball Screw Series 26 Travel 200mm M6 Thread with Encoder
OSMS(CS)26-200(X)-M6
×
Precision motorized stages with built-in compact optical scales make highly accurate and reliable full closed loop system using Sigma-Koki controllers (SHOT-302GS/304GS, HIT-M・HIT-S).
| Name | Motorized Single Axis Stage Enclosed Ball Screw Series 26 Travel 200mm M6 Thread with Encoder |
|---|---|
| Weight | 4.3000kgs |
| Guide |
|
| Attention | - |
| Image Label | Motorized Single Axis Stage Enclosed Ball Screw Series 26 Travel 200mm M6 Thread with Encoder |
| Travel | 200mm |
| Load Capacity | 117N (12.0kg) |
| Travel | 200mm |
| Stage Size | 120×120mm |
| Feed Screw | Ball screw diameter φ8mm、2mm lead |
| Positioning Slide | Outer rail structure |
| Stage Material | Aluminium |
| Finish | Black anodized |
| Resolution (Full) | 4μm/pulse |
| Resolution (Half) | 2μm/pulse |
| MAX Speed | 30mm/sec |
| Positioning Accuracy | 15μm |
| Positional Repeatability | 3μm |
| Load Capacity | 117N(12.0kgf) |
| Moment Stiffness / Pitch | 0.23″/N･cm |
| Moment Stiffness / Yaw | 0.12″/N･cm |
| Moment Stiffness / Roll | 0.2″/N･cm |
| Lost Motion | 5μm |
| Backlash | 3μm |
| Parallelism | 50μm |
| Running Parallelism | 10μm |
| Pitch | 30″ |
| Yaw | 25″ |
| Sensor Part Number | Micro photo sensor : GP1S092HCPIF(Sharp Corporation) |
| Limit Sensor | Equipped (NORMAL CLOSE) |
| Origin Sensor | Equipped (NORMAL OPEN) |
| Proximity Origin Sensor | Equipped (NORMAL OPEN) |
| Scale head | 0.5μm |
In stock
SKU
OSMS(CS)26-200(X)-M6
£2,234.49
Customize product
Precision motorized stages with built-in compact optical scales make highly accurate and reliable full closed loop system using Sigma-Koki controllers (SHOT-302GS/304GS, HIT-M・HIT-S).
