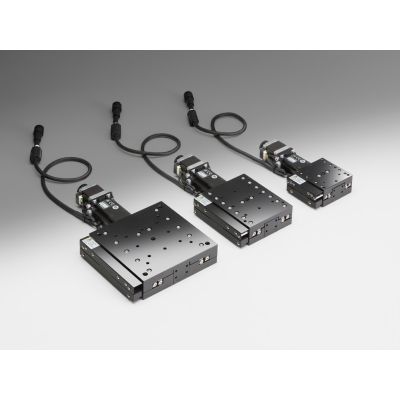

Motorized Aluminum Extended Contact Single Axis Stage 60mm Size 20mm Travel
HPS60-20X-M5
×
Motorized stages with ball screws and extended contact bearings offer mid to upper level performance at a low price.
| Name | Motorized Aluminum Extended Contact Single Axis Stage 60mm Size 20mm Travel |
|---|---|
| Weight | 0.6000kgs |
| Guide |
|
| Attention | - |
| Image Label | Motorized Aluminum Extended Contact Single Axis Stage 60mm Size 20mm Travel |
| Travel | 20mm |
| Load Capacity | 49N (5.0kg) |
| Travel | 20mm |
| Stage Size | 60×60mm |
| Feed Screw | Ball screw diameter φ6mm、1mm lead |
| Positioning Slide | Extended Contact Ball Guide |
| Stage Material | Aluminium |
| Finish | Black anodized |
| Resolution (Full) | 2μm/pulse |
| Resolution (Half) | 1μm/pulse |
| Minimum Incremental Motion (refurence) | 0.1μm |
| MAX Speed | 10mm/sec |
| Positioning Accuracy | 15μm |
| Positional Repeatability | ±1μm |
| Load Capacity | 49N(5.0kgf) |
| Moment Stiffness / Pitch | 0.4″/N･cm |
| Moment Stiffness / Yaw | 0.4″ |
| Moment Stiffness / Roll | 0.3″ |
| Lost Motion | 1μm |
| Backlash | 1μm |
| Parallelism | 30μm |
| Running Parallelism | 10μm |
| Pitch | 25″ |
| Yaw | 25″ |
| Sensor Part Number | Micro photo sensor : GP1S097HCZ(Sharp Corporation) |
| Limit Sensor | Equipped (NORMAL CLOSE) |
| Origin Sensor | Equipped (NORMAL OPEN) |
| Proximity Origin Sensor | None |
In stock
SKU
HPS60-20X-M5
$752.00
Customize product
Motorized stages with ball screws and extended contact bearings offer mid to upper level performance at a low price.
