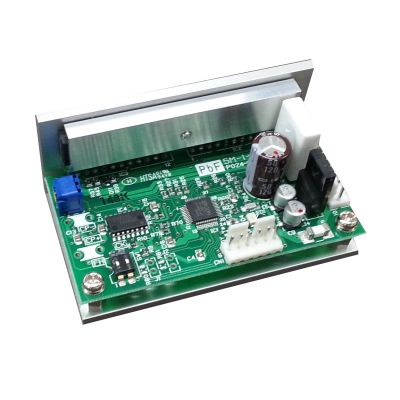

Compact Driver High Current CE Marked
MC-5M
Drivers List
-
| Name | Compact Driver High Current CE Marked |
|---|---|
| Weight | 0.1000kgs |
| Guide |
|
| Attention | - |
| Image Label | Compact Driver High Current CE Marked |
| Product Name | Compact Driver |
| Driving Motor | 5-phase stepping motor |
| Drive System | Bipolar constant current pentagon drive |
| Driving Current | 0.5 − 1.4A/phase |
| Excitation System | Full / Half step |
| Number of Divisions | Two types (1, 2) |
| Input Signal |
1 clock input method 2 clock input method |
| Input Logic | Photocoupler input |
| Max. Response Frequency | 50kpps |
| Auto Current Down OFF Input | None |
| Motor Excitation OFF Input | Equipped |
| Micro-step Selection Input | None |
| Origin Excitation Timing Output | None |
| Input Voltage |
DC20 - 40V 3A Max |
| Operating Temperature Range | 0 − 40°C |
| External Dimensions | (W)77×(H)32×(D)45mm |
