Miniature Motorized Goniometer Stage

GOHM-A

In stock

SKU

GOHM-A

Customize product

Filters

Remove all filters

Name

Stage Size

Delivery

Price

Add to cart

details

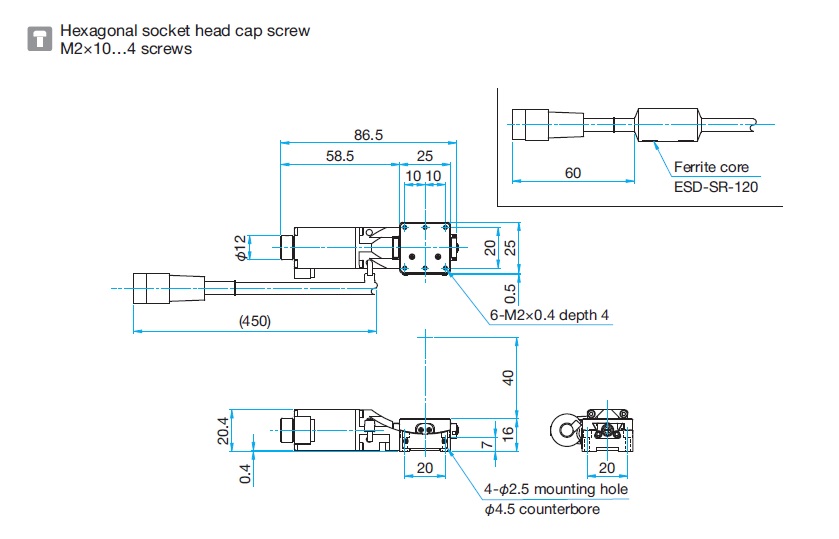

GOHM-25A40

φ40mm

6-12 weeks

Angle Range	±6°
Stage Size	25×25mm
Positioning Slide	Dovetail slide method
Transmission mechanism	worm gear
Stage Material	Brass
Finish	Black chrome
Weight	0.28kg
Stage Height	16mm
Rotation Center Height	40mm
Resolution (Full)	about 0.00334°/pulse
Resolution (Half)	about 0.00167°/pulse
MAX Speed	3°/sec
Positional Repeatability	±0.01°
Load Capacity	9.8N（1.0kgf）
Moment Stiffness (Roll)	5″/N･cm
Lost Motion	0.05°
Sensor Part Number	Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor	Equipped (NORMAL CLOSE)
Origin Sensor	None
Proximity Origin Sensor	None
Motor / Motor Type	5-phase stepping motor 0.35A/phase (Oriental Motor Co., Ltd.)
Motor / Motor Part Number	PK513PB-C9（□20mm）
Motor / Motor Step Angle	0.72°
Sensor / Power Voltage	DC5 - 24V±10%
Sensor / Current Consumption	40mA or lower (20mA per sensor)
Sensor / Control Output	NPN open collector output 50mA
Sensor / Output Logic	When shaded: Output transistor OFF (no conduction)
Compatible Driver	SG-5M, MC-S0514ZU, SG-514MSC
Compatible Controller	GSC-01、GSC-02、SHOT-302GS、SHOT-304GS、SHOT-702、HIT-MV/HIT-SA、PGC-04-U
