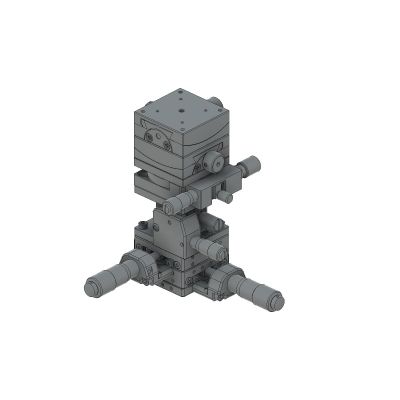

Steel Extended Contact 6 Axis Stage 40mm Size Center Drive Metric Threads
TSD-40EC
×
High Precision manul translation stage assembly with fine adjustment in four axes.
| Name | Steel Extended Contact 6 Axis Stage 40mm Size Center Drive Metric Threads |
|---|---|
| Weight | 1.2300kgs |
| Guide | - |
| Attention | - |
| Image Label | Steel Extended Contact 6 Axis Stage 40mm Size Center Drive Metric Threads |
| Stage Size | φ40mm |
| Travel | XY axis±6.5mm Z axis±3mm |
| Angle Range | α axis : ±15° β axis : ±20° |
| Rotation Range | Coarse:360° Fine:±5° |
| Load Capacity | 49N (5.0kg) |
| Stage Size | □40mm |
| Travel | XY axis : ±6.5mm Z axis : ±3mm |
| Rotation Range | Coarse:360° Fine:±5° |
| Angle Range | α axis : ±15° β axis : ±20° |
| Rotation Center Height | 35mm |
| Load Capacity | 49N(5.0kgf) |
In stock
SKU
TSD-40EC
£2,084.24
Customize product
High Precision manul translation stage assembly with fine adjustment in four axes.
