60X60mm Dovetail Bearing, Brass, XZ-Axis Stage, Coarse/Fine Rack&Pinion Drive, 37mm, M4 Threads
TAR-60704D
×
The TAR series translation stages have dovetail rack and pinion guides. They are suitable for frequent operations that require quick motion and long travel. This model incorporates a course and fine adjustment.
| Name | 60X60mm Dovetail Bearing, Brass, XZ-Axis Stage, Coarse/Fine Rack&Pinion Drive, 37mm, M4 Threads |
|---|---|
| Weight | 0.8500kgs |
| Guide |
|
| Attention |
|

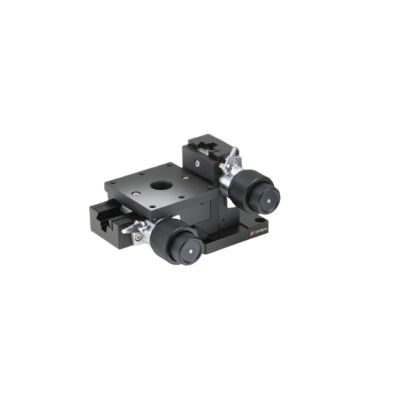

| Image Label | Rack and Pinion Dovetail XZ Stage 60×60mm Size Metric Threads 74mm X 33mm Z Travel with Coarse and Fine Adjustment |
| Stage Size | 60×60mm |
| Travel | X axis : +37mm・-0 Z axis : ＋33mm・-0 |
| Load Capacity | 14.7N (1.5kg) |
| Lead of Actuator | Coarse：about 20mm Fine：about 2.5mm |
| Vernier Scale | 0.1mm |
| Guide Method | Dovetail method |
| Primary Material | Brass |
| Finish | Super black chrome |
| Travel Accuracy / Straightness | 30μm |
| Max. Moment Capacity / Pitch | 0.4N･m |
| Max. Moment Capacity / Roll | 0.5N･m |
| Max. Moment Capacity / Yaw | - |
| Moment Stiffness / Pitch | - |
| Moment Stiffness / Roll | - |
| Parallelism | - |
In stock
SKU
TAR-60704D
£573.76
Customize product
The TAR series translation stages have dovetail rack and pinion guides. They are suitable for frequent operations that require quick motion and long travel. This model incorporates a course and fine adjustment.
