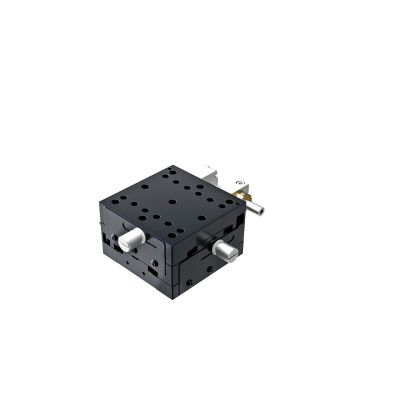

65X65mm Crossed-Roller Bearing, Aluminum, XY-Axis Stage, Side Hex Screw, +/-6.5mm, 1/4-20 Threads, Right-handed

TAM-652SRFPUU

High precision crossed-roller linear translation stages with black anodized aluminum bodies.

See the Left Handed version of this product

More Information
Name	65X65mm Crossed-Roller Bearing, Aluminum, XY-Axis Stage, Side Hex Screw, +/-6.5mm, 1/4-20 Threads, Right-handed
Weight	0.3000kgs
Guide	-
Attention	Micrometer brackets may extend above the top surface of some stages. Check drawings for detailed information. Note that based upon payload size, rated travel could be reduced.
Image Label	Aluminum Crossed Roller X Stage Size Side Drive Inch Threads Right Hand with Fine Pitch Screw
Stage Size	65×65mm
Travel	±6.5
Load Capacity	196N (20.0kg)
Mounting Thread	1/4-20UNC
Micrometer Position	Side
Lead of Actuator	0.25mm
Micrometer Readable Resolution	-

In stock

SKU

TAM-652SRFPUU

£639.81

High precision crossed-roller linear translation stages with black anodized aluminum bodies.
