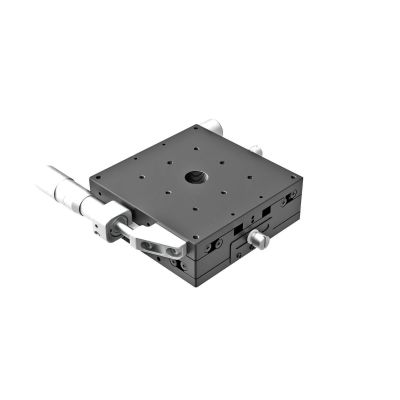

100X100mm EXC Bearing, Steel, XY-Axis Stage, Side Micrometer, +/-12.5mm, M4 Threads, Right-handed
TSD-1002SR
×
Hardened steel linear stages with integrated bearing ways and a black chrome finish. Our “Extended Contact” technology yields superior stability, stiffness, accuracy, and durability.
These XY stages are integrated and therefore have a lower profile vs. (2) single axis stages combined.
There are options for micrometer position and fine pitch screws.
These XY stages are integrated and therefore have a lower profile vs. (2) single axis stages combined.
There are options for micrometer position and fine pitch screws.
| Name | 100X100mm EXC Bearing, Steel, XY-Axis Stage, Side Micrometer, +/-12.5mm, M4 Threads, Right-handed |
|---|---|
| Weight | 2.6000kgs |
| Guide |
|
| Attention |
|
| Image Label | Steel Extended Contact XY Stage 100x100mm Size Side Drive Metric Threads Right Hand |
| Stage Size | 100×100mm |
| Travel | ±12.5mm |
| Load Capacity | 588N (60.0kg) |
| Mounting Thread | M4 |
| Micrometer Position | Side |
| Lead of Actuator | 0.5mm |
| Micrometer Readable Resolution | 0.01mm |
In stock
SKU
TSD-1002SR
£864.95
Customize product
Hardened steel linear stages with integrated bearing ways and a black chrome finish. Our “Extended Contact” technology yields superior stability, stiffness, accuracy, and durability.
These XY stages are integrated and therefore have a lower profile vs. (2) single axis stages combined.
There are options for micrometer position and fine pitch screws.
These XY stages are integrated and therefore have a lower profile vs. (2) single axis stages combined.
There are options for micrometer position and fine pitch screws.
