65X65mm Crossed-Roller Bearing, Aluminum, X-Axis Stage, Side Hex Screw, +/-12.5mm, 1/4-20 Threads

TAM-651SFP25UU

×
3d-simple-product

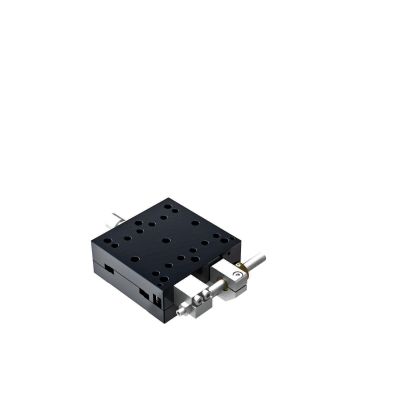

main product photo
High precision crossed-roller linear translation stages with black anodized aluminum bodies.



More Information
Name 65X65mm Crossed-Roller Bearing, Aluminum, X-Axis Stage, Side Hex Screw, +/-12.5mm, 1/4-20 Threads
Weight 0.3000kgs
Guide -
Attention
  • Micrometer brackets may extend above the top surface of some stages. Check drawings for detailed information.
  • Note that based upon payload size, rated travel could be reduced.
Image Label Aluminum Crossed Roller X Stage Size Side Drive Inch Threads with Fine Pitch Screw
Stage Size 65×65mm
Travel ±12.5mm
Load Capacity 196N (20.0kg)
Mounting Thread 1/4-20UNC
Micrometer Position Side
Lead of Actuator 0.25mm
Micrometer Readable Resolution -
In stock
SKU
TAM-651SFP25UU
£320.00

Delivery in : 2 weeks

custom product
Customize product
Add to Wish List
High precision crossed-roller linear translation stages with black anodized aluminum bodies.
