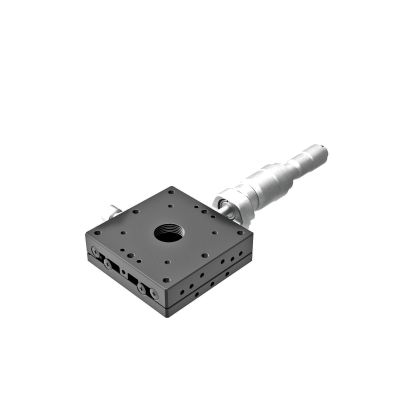

60X60mm EXC Bearing, Steel, X-Axis Stage, Center Differential Micrometer, +/-6.5mm, M4 Threads
TSD-601CDM
×
Hardened steel linear stages with integrated bearing ways and a black chrome finish. Our “Extended Contact” technology yields superior stability, stiffness, accuracy, and durability.
There are options for micrometer position and fine pitch screws.
There are options for micrometer position and fine pitch screws.
| Name | 60X60mm EXC Bearing, Steel, X-Axis Stage, Center Differential Micrometer, +/-6.5mm, M4 Threads |
|---|---|
| Weight | 0.5000kgs |
| Guide |
|
| Attention |
|
| Image Label | Steel Extended Contact X Stage 60x60mm Size Center Drive Metric Threads with Differential Micrometer |
| Stage Size | 60×60mm |
| Travel | ±6.5mm |
| Load Capacity | 343N (35.0kg) |
| Mounting Thread | M4 |
| Moment Stiffness / Pitch | 0.08″/N・cm |
| Moment Stiffness / Yaw | 0.08″/N・cm |
| Moment Stiffness / Roll | 0.05″/N・cm |
| Guide Method | Extended Contact Ball Bearing Guide |
| Travel Accuracy / Pitch | 25″ |
| Travel Accuracy / Yaw | 15″ |
| Travel Accuracy / Straightness | 0.5μm |
| Running Parallelism | 7μm |
| Max. Moment Capacity / Pitch | 13.2N・m |
| Max. Moment Capacity / Yaw | 10N・m |
| Max. Moment Capacity / Roll | 14.7N・m |
| Primary material | Steel |
| Finish | Super black chrome |
In stock
SKU
TSD-601CDM
$791.00
Customize product
Hardened steel linear stages with integrated bearing ways and a black chrome finish. Our “Extended Contact” technology yields superior stability, stiffness, accuracy, and durability.
There are options for micrometer position and fine pitch screws.
There are options for micrometer position and fine pitch screws.
