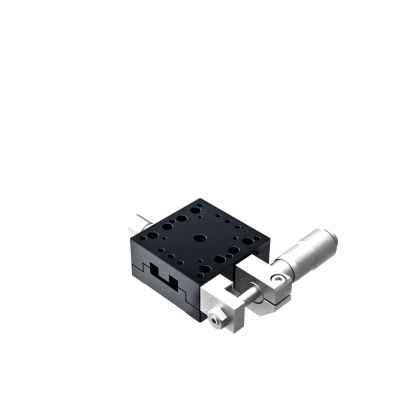

40X40mm Crossed-Roller Bearing, Aluminum, X-Axis Stage, Side Micrometer, +/-6.5mm, M3 Threads

TAM-401S

High precision crossed-roller linear translation stages with black anodized aluminum bodies.

See the Right Handed version of this product

More Information
Name	40X40mm Crossed-Roller Bearing, Aluminum, X-Axis Stage, Side Micrometer, +/-6.5mm, M3 Threads
Weight	0.1300kgs
Guide	The part number suffix FP indicates products with fine-pitch screws instead of standard micrometers. Fine Pitch screws have a screw pitch of 0.25mm and require a hex wrench or the optional hex wrench with knob (KCL) for adjustment.(WEB Reference Catalog Code/W8008-3)
Attention	Micrometer brackets may extend above the top surface of some stages. Check drawings for detailed information. Note that based upon payload size, rated travel could be reduced.
Image Label	Aluminum Crossed Roller X Stage Size Side Drive Metric Threads
Stage Size	40×40mm
Travel	±6.5mm
Load Capacity	49N (5.0kg)
Mounting Thread	M3
Micrometer Position	Side
Lead of Actuator	0.5mm
Micrometer Readable Resolution	0.01mm

In stock

SKU

TAM-401S

£284.70

High precision crossed-roller linear translation stages with black anodized aluminum bodies.
