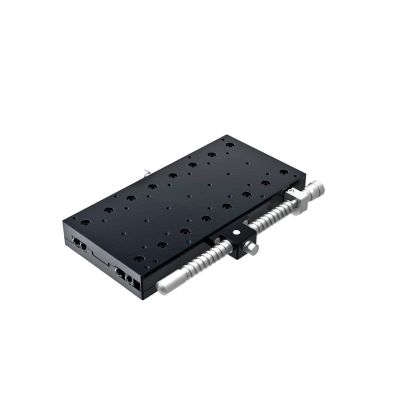

100X200mm Crossed-Roller Bearing, Aluminum, X-Axis Stage, Side Differential Micrometer, +/-50mm, M4 Threads
TAM-10201SDM
×
High precision crossed-roller linear translation stages with black anodized aluminum bodies.
| Name | 100X200mm Crossed-Roller Bearing, Aluminum, X-Axis Stage, Side Differential Micrometer, +/-50mm, M4 Threads |
|---|---|
| Weight | 1.7000kgs |
| Guide | - |
| Attention | - |
| Image Label | Aluminum Crossed Roller X Stage 100×200mm Size Side Drive Metric Threads with Differential Micrometer |
| Stage Size | 100×200mm |
| Travel | Coarse：±50mm Fine：±3mm |
| Load Capacity | 980N (100.0kg) |
| Mounting Thread | M4 |
| Micrometer Position | Side |
| Lead of Actuator | Coarse：5mm Fine：0.5mm |
| Micrometer Readable Resolution | 0.01mm |
| Guide Method | Crossed roller |
| Primary Material | Aluminum |
| Finish | Black anodized |
| Travel Accuracy / Straightness | 3μm |
| Travel Accuracy / Pitch | 60″ |
| Travel Accuracy / Yaw | 25″ |
| Max. Moment Capacity / Pitch | 100N･m |
| Max. Moment Capacity / Roll | 99.1N･m |
| Max. Moment Capacity / Yaw | 98.1N･m |
| Moment Stiffness / Pitch | 0.036″/N･cm |
| Moment Stiffness / Roll | 0.03″/N･cm |
| Moment Stiffness / Yaw | - |
| Parallelism | 100μm |
| Running Parallelism | 20μm |
In stock
SKU
TAM-10201SDM
£819.46
Customize product
High precision crossed-roller linear translation stages with black anodized aluminum bodies.
