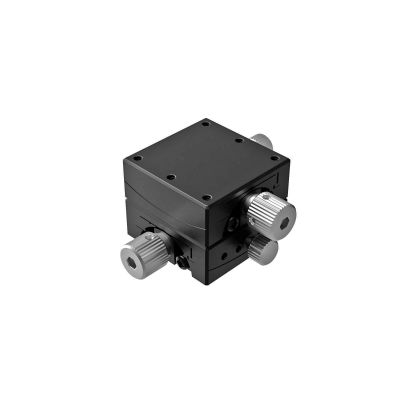

25X25mm Goniometer, Brass Dovetail, 2-Axis, +/-15 deg, 30mm Axis Ht, Worm-gear, M2 Thd
GOH-25B30
×
Goniometers with dovetail slide and worm gear construction for angular adjustment of heavy loads.
| Name | 25X25mm Goniometer, Brass Dovetail, 2-Axis, +/-15 deg, 30mm Axis Ht, Worm-gear, M2 Thd |
|---|---|
| Weight | 0.1300kgs |
| Guide | - |
| Attention |
|
| Image Label | αβ Axis Goniometers |
| Stage Size | 25×25mm |
| Angle Range/(Upper) β axis | ±15° |
| Load Capacity | 19.6N (2.0kg) |
| Rotation Center Height | 30±0.1mm |
| Angle Range/(Upper) β axis | ±15° |
| Angle Range/(Lower) α axis | ±10° |
| Vernier Readable Resolution | 12′ |
| Travel per Knob Rotation/(Upper) β axis | about 2.17° |
| Travel per Knob Rotation/(Lower) α axis | about 1.67° |
| Rotation Center Displacement | φ0.1mm or less |
| Guide Method | Dovetail slide method |
| Primary material | Brass |
| Finish | Super black chrome |
| Max. Moment Capacity / Pitch | 0.35N・m |
| Max. Moment Capacity / Roll | 0.35N・m |
| Parallelism | 100μm |
In stock
SKU
GOH-25B30
£648.35
Customize product
Goniometers with dovetail slide and worm gear construction for angular adjustment of heavy loads.
