Diode Lasers
LDH3-670-4.5

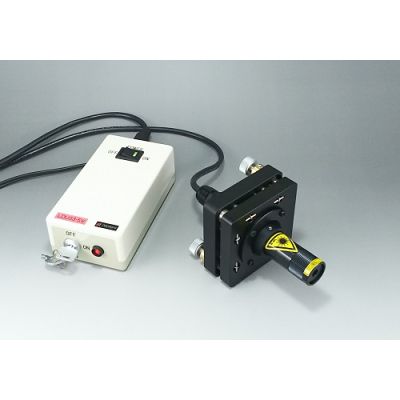

LHD3 is a semiconductor laser diode(LDH33) integrated mirror holder(MHL-25.4S). LHD3 makes precise laser beam direction adjustment available.
◦Semiconductor laser diode(LDU33)） is fixed on the holder with two sets of bolt and be able to be taken off.
◦Power supply for the laser diode is included.
◦Beam deviation angle is adjustable by collimation alignment of the laser diode.
◦Can be fixed onto the post holder or optical baseplate with M4, 25 by 25mm matrix by choosing the post(RO) or the base plate(MHL-BP).
◦Power supply for the laser diode is included.
◦Beam deviation angle is adjustable by collimation alignment of the laser diode.
◦Can be fixed onto the post holder or optical baseplate with M4, 25 by 25mm matrix by choosing the post(RO) or the base plate(MHL-BP).
| Name | Diode Lasers |
|---|---|
| Weight | 2.6000kgs |
| Standard Coatings Available | No |
| Guide |
|
| Attention |
|
| Image Label | Diode Lasers |
| Wavelength Range | 670nm |
| Wavelength | 670nm |
| Power | 4.5mW |
| Beam Diameter | about 5×2mm |
| Part Number of Laser | LDU33-670-4.5 |
| Adjustment Range /Tilt | ±2° |
| Adjustment Range Rotation | ±2° |
| Weight of LD holder | 0.43kg |
| Weight of Power Supply | 0.3kg |
In stock
SKU
LDH3-670-4.5
Customize product
LHD3 is a semiconductor laser diode(LDH33) integrated mirror holder(MHL-25.4S). LHD3 makes precise laser beam direction adjustment available.
