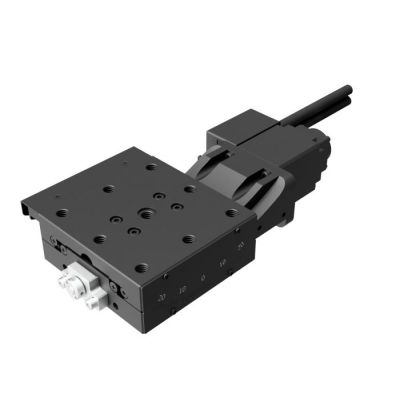

α Axis Motorized Extended Guide Goniometer - 2 Phase Stepping Motor
OSMS(RE)-65A50-INCH-M2
Based on our CE-compliant OSMS-A Series α Axis Motorized Extended Guide Goniometer, we have newly added a model equipped with a "2-phase stepping motor with rotary encoder" to our lineup.
A rotary encoder built into the motor enables "Step-out detection" with a dedicated controller.
- The product is equipped with a "2-phase bipolar stepping motor".
- Specifications of the stage main unit are equivalent to those of OSMS-A Series α Axis Motorized Extended Guide Goniometer.
- Table size can be selected from 40x40 mm or 65x65 mm.
- The product main body are the same for the METRIC and INCH type stages.
- METRIC and INCH types are available for mounting on the table for each size.
| Name | α Axis Motorized Extended Guide Goniometer - 2 Phase Stepping Motor |
|---|---|
| Weight | 1.0000kgs |
| Guide |
|
| Attention |
|
| Stage Size | 65×65mm |
| Main Material | SUS440C Stainless Steel |
| Finish | Super Black Chrome |
| Rotation Center Tolerance | Within 10um Diameter |
| Position Repeatability | 0.004 Degree |
| Lost Motion | 0.02 Degree |
| Position Sensors | Limit and Origin |
| Motor Type | 2-Phase Stepping Motor 1.2A/phase |
| Rotary Encoder Resolution | 500 pulses /rotation |
| Motor Step Angle | 1.8 Degrees |
| Compatible Controllers | (HIT-MV and HIT-SA-M2) or SHRC-203-M2 |
| Driver/Encoder cables | D15H12A-RC / GSEF-CA |
In stock
SKU
OSMS(RE)-65A50-INCH-M2
£2,246.91
Customize product
Based on our CE-compliant OSMS-A Series α Axis Motorized Extended Guide Goniometer, we have newly added a model equipped with a "2-phase stepping motor with rotary encoder" to our lineup.
A rotary encoder built into the motor enables "Step-out detection" with a dedicated controller.
