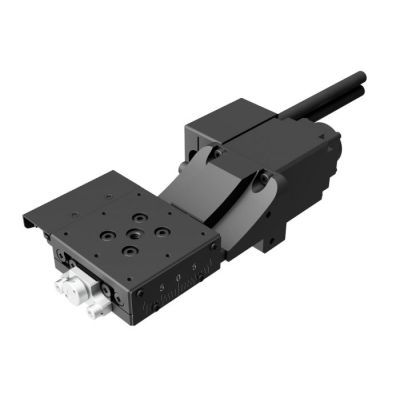

α Axis Motorized Extended Guide Goniometer - 2 Phase Stepping Motor
OSMS(RE)-40A75-M2
Based on our CE-compliant OSMS-A Series α Axis Motorized Extended Guide Goniometer, we have newly added a model equipped with a "2-phase stepping motor with rotary encoder" to our lineup.
A rotary encoder built into the motor enables "Step-out detection" with a dedicated controller.
- Please purchase ""D15H12A-RC-3"" cable and ""GSEF-CA-3"" separately to connect to the Controller.
- When the step-out detection function is not used, “GSEF-CA-3” is not necessary. * Please disable the step-out detection function on the controller side in that case.
| Name | α Axis Motorized Extended Guide Goniometer - 2 Phase Stepping Motor |
|---|---|
| Weight | 0.5000kgs |
| Guide |
|
| Attention |
|
| Stage Size | 40×40mm |
| Angle Range | ±6° |
| Main Material | SUS440C Stainless Steel |
| Finish | Super Black Chrome |
| Rotation Center Tolerance | Within 10um Diameter |
| Position Repeatability | 0.004 Degree |
| Lost Motion | 0.02 Degree |
| Position Sensors | Limit and Origin |
| Motor Type | 2-Phase Stepping Motor 1.2A/phase |
| Rotary Encoder Resolution | 500 pulses /rotation |
| Motor Step Angle | 1.8 Degrees |
| Compatible Controllers | (HIT-MV and HIT-SA-M2) or SHRC-203-M2 |
| Driver/Encoder cables | D15H12A-RC / GSEF-CA |
In stock
SKU
OSMS(RE)-40A75-M2
£2,122.65
Customize product
Based on our CE-compliant OSMS-A Series α Axis Motorized Extended Guide Goniometer, we have newly added a model equipped with a "2-phase stepping motor with rotary encoder" to our lineup.
A rotary encoder built into the motor enables "Step-out detection" with a dedicated controller.
