355nm Laser Induction Dichroic Cube for OUCI

DIMC-355R

Skip to the end of the images gallery

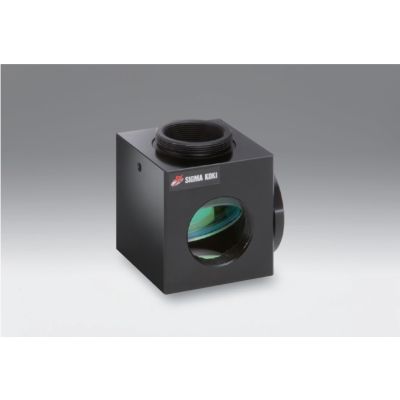

main product photo

Skip to the beginning of the images gallery

Allows the induction of a laser beam into the optical path of the OUCI microscope body products.

-

More Information

More Information
Name	355nm Laser Induction Dichroic Cube for OUCI
Weight	0.1200kgs
Guide	Laser introduction direction can be adjusted in any direction of 360º. Please check the product instruction manual about the adjustment method. Not included adjustment tool (Hex wrench). The tilt adjustment of the internal mirror can be available. Please check the product instruction manual about the adjustment method. Not included adjustment tools (Hex wrench and screwdriver). Mounting standard of the objective lens is M26 P=0.706, but for mounting the conversion adapter attached to the observation unit with coaxial illumination conversion adapter, M20.32 P=0.706 can be available. A wide variety of objective lenses is available. Long working distance objective lenses (WEB Reference Catalog Code/W3086), Glass Thickness Compensation Ultra-violet Objective Lenses (WEB Reference Catalog Code/W3463), Thickness Compensation Near Ultra-violet Objective Lenses (WEB Reference Catalog Code/W3464), and Thickness Compensation Near Infrared Objective Lenses (WEB Reference Catalog Code/W3465).
Attention	There is an adjustment mechanism in the internal mirror, but it is for only fine adjustment. Incident of the laser beam is requested vertically as much as possible. There is a possibility that the image of the coaxial observation in the laser introduction is not clear.
Image Label	Dichroic Case for Laser Introduction at 355nm
Wavelength Range	355nm
Input aperture	φ10mm
Reflectance	＞99.5%(355nm)
Laser Damage Threshold	5J/㎝
Mounting screw thread for Observation unit	M26 P＝0.706
Mounting screw for Objective lens	M26 P＝0.706

In stock

SKU

DIMC-355R

£332.60

Allows the induction of a laser beam into the optical path of the OUCI microscope body products.
